Overview of Paint Repair Pictograms (Painting Repair System)

Make

Vauxhall

Model

Astra G

Section

Painting Repair System › Repair Instructions › Overview of Paint Repair Pictograms

PaintOverview of Paint Repair Pictograms

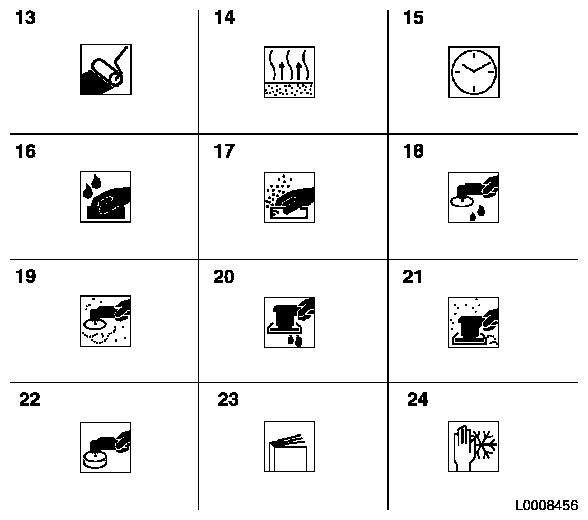

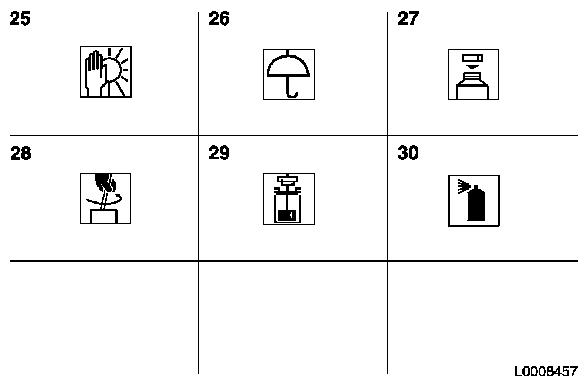

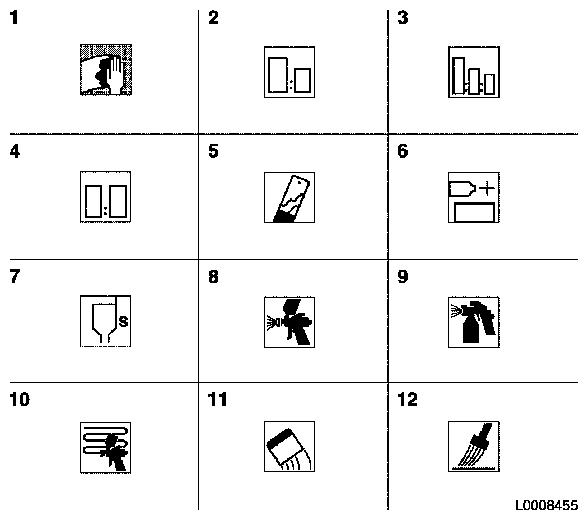

Overview of Paint Repair Pictograms 1 Cleaning, degreasing 7 Processing viscosity 2 Mix ratio of 2 components 8 Pressure feed cup gun 3 Mix ratio of 3 components 9 Suction feed cup gun 4 Mix ratio 1:1 of 2 components 10 Spray coatings 5 Measuring rod 11 Putty application 6 Hardener addition (small amount) 12 Painting 13 Rolling 19 Eccentric sanding (dry) 14 Setting 20 Vibration sander (wet) 15 Drying time 21 Vibration sander (dry) 16 Sanding by hand (wet) 22 Polishing 17 Sanding by hand (dry) 23 Processing data and identification data 18 Eccentric sanding (wet) 24 Do not store below freezing point 25 Store in a cool place 26 Store in a dry place 27 Seal containers 28 Stir (stirrer) 29 Stir (colour mixing machine) 30 Spray can
