Turbocharger, Remove and Install (Turbo-Charging)

Turbocharger, Remove and Install

  Remove

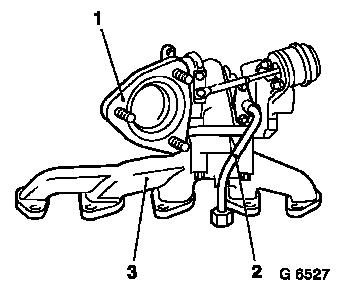

Remove exhaust manifold – see operation "Exhaust Manifold with Turbocharger, Remove". Remove exhaust manifold (3) from turbocharger – 3 fastening bolts. Remove return manifold (1) from turbocharger – 3 fastening bolts. Detach turbocharger oil return line (2) from turbocharger.

  Install

Attach turbocharger oil return line to turbocharger with new gasket – tightening torque 8 Nm / 6 lbf. ft.

Attach return manifold to turbocharger – tightening torque 30 Nm / 22 lbf. ft.

Attach exhaust manifold with new gasket to turbocharger – tightening torque 30 Nm / 22 lbf. ft.

Install exhaust manifold – see operation "Exhaust Manifold with Turbocharger, Remove".
