Vauxhall Astra H06 · Front Wheel Suspension, Wheels and Tyres
06 · Steering & suspension

Wheel centre plane

Make
Vauxhall
Model
Astra H
Section
Repair Instructions › Wheel centre plane
Front Wheel Suspension, Wheels and TyresWheel centre plane

Wheel centre plane

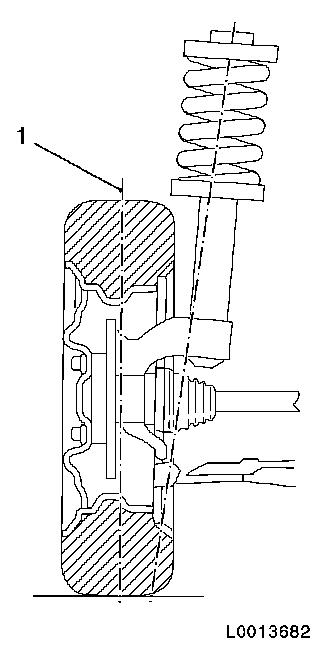

The wheel centre plane (1) is the centre plane of the tyre vertical to the wheel axis of rotation.

 Object Number: 8036358 Size: DEFAULT
