Starter (Replace starter): Repair Instructions

Make

Vauxhall

Model

Astra H

Section

Starter › Repair Instructions › Replace starter

Engine and Engine AggregatesReplace starter

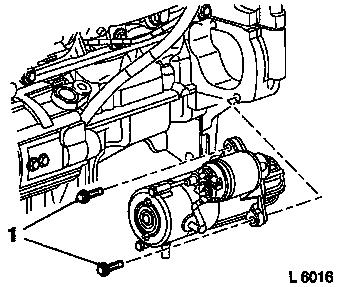

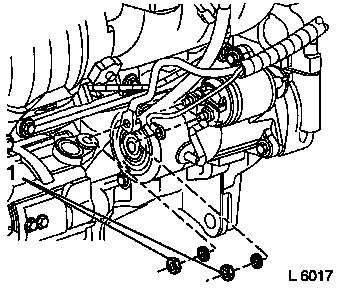

Replace starter   Remove 1.   Open bonnet 2.   Disconnect battery •   Detach earth connection – Slacken nut 3.   Detach starter wiring harness •   Unscrew 2x nuts (1) 4.   Remove starter •   Unscrew 2x bolts (1)   Install 5.   Install starter •   Tighten 2x bolt 40 Nm 6.   Attach starter wiring harness •   Tighten 2x nuts 7.   Connect battery •   Attach earth connection – Tighten nut 8.   Program volatile memories 9.   Close bonnet

09 Engine
