Straight Ahead Position, Check/Adjust > < CIM steering column - Noises during steering wheel motion

Astra H

  • M Steering
  • Steering Linkage
  • Repair Instructions
  • Illustration, Steering

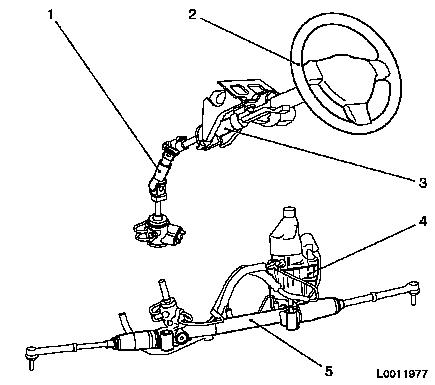

Illustration, Steering

Object Number: 3447176 Size: DEFAULT

1. Intermediate Shaft LUREF_1.gif
2. Steering wheel
3. Steering Column Assembly LUREF_1.gif LUREF_1.gif
4. Electro-hydraulic supply unit
    TRW
    ZF
5. Steering Gear
    TRW
    ZF

  • M Steering
  • Steering Linkage
  • Repair Instructions
  • Illustration, Steering

Straight Ahead Position, Check/Adjust > < CIM steering column - Noises during steering wheel motion
