Replace horn control (Switches)

Make

Vauxhall

Model

Astra H

Section

Switches › Repair Instructions › Replace horn control

Electrical Equipment and InstrumentsReplace horn control

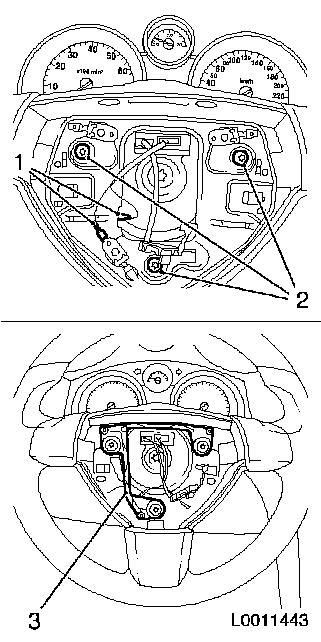

Replace horn control Warning:   After disconnecting the battery, wait 1 minute for the condenser to discharge.   Remove 1.   Disconnect battery. 2.   Remove airbag •   Turn steering wheel through 90 degrees (I) •   Insert a small screwdriver in the service opening (II) and press retaining clip towards the steering column (III) and remove airbag module Note:   Ensure that the retaining clip is not bent. •   Release wiring harness plug and disconnect 3.   Remove horn control •   Disconnect 2x wiring harness plug (1) •   Unscrew 3x bolt (2) •   Remove horn control •   Remove signal switch board (3)   Install 4.   Install horn control •   Insert signal switch board •   Insert signal switch control •   Tighten 3x bolt •   Connect 2x wiring harness plug 5.   Install airbag unit •   Connect and lock wiring harness plug •   Clamp airbag unit in place 6.   Connect battery. 7.   Carry out readiness test •   After ignition ON, the Airbag system readiness check light comes on for 4 seconds and then goes out. 8.   Program volatile memories
