Brake Caliper Inspection
| 1. |

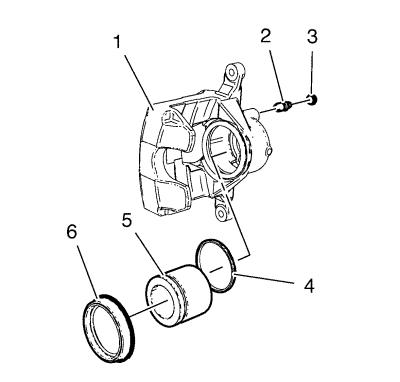

Inspect the brake caliper
housing (1) for cracks, excess wear, and/or damage. If any of these
conditions are present, the brake caliper requires
replacement. |
| 2. |
Inspect the caliper piston
dust boot seal (6) for cracks, tears, cuts, deterioration and/or
improper seating in the caliper body. If any of these conditions
are present, the brake caliper requires overhaul or
replacement. |
| 3. |
Renew brake caliper bleeder
valve cap (3) if missing. |
| 4. |
Check for blocked bleeder
valve (2). |
| 5. |
Inspect for smooth and
complete travel of the caliper pistons into the caliper
bores: |
| |
The movement of the caliper pistons into the caliper bores
should be smooth and even. If the caliper piston is frozen or
difficult to bottom, the caliper requires overhaul or
replacement. |
| |
Insert a discarded inner brake pad (2) or block of wood in
front of the piston. Using a large C-clamp (1) installed over the
body of the caliper (3) and against the brake pad or block of wood,
slowly bottom the piston in the bore. |
|
|
