Astra J
HVAC
HVAC - Manual / Repair Instructions
Mode Control Cam Replacement - Left Hand Drive

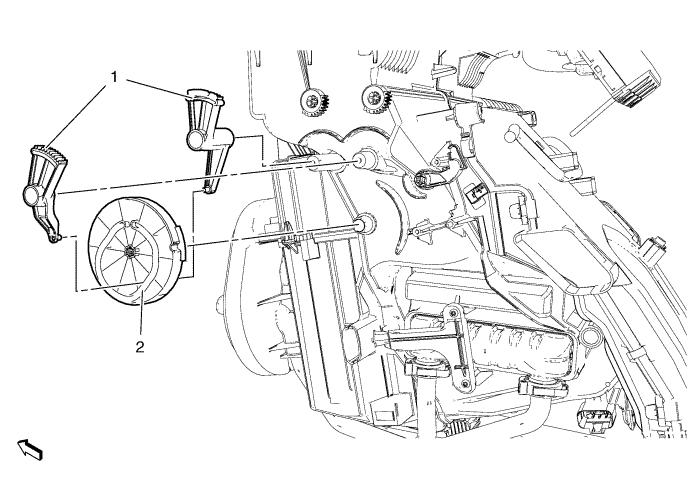

Mode Control Cam Replacement (Left Hand Drive)
Callout
Component Name
Preliminary Procedures
Remove mode control cam actuator mounting plate. Refer to
Mode Control Cam Actuator Mounting Plate Replacement
.
1
Vent Valve Lever (Qty: 2)
2
Heater and Air Conditioning Mode Control Cam
Procedure
Lubricate heater and air conditioning mode control cam in order to assure proper operation. Refer to
Adhesives, Fluids, Lubricants, and Sealers
.
