Mode Control Cam Replacement - Right Hand Drive (HVAC - Manual)

Make

Vauxhall

Model

Astra J

Section

HVAC - Manual › Repair Instructions › Mode Control Cam Replacement - Right Hand Drive

HVACMode Control Cam Replacement - Right Hand Drive

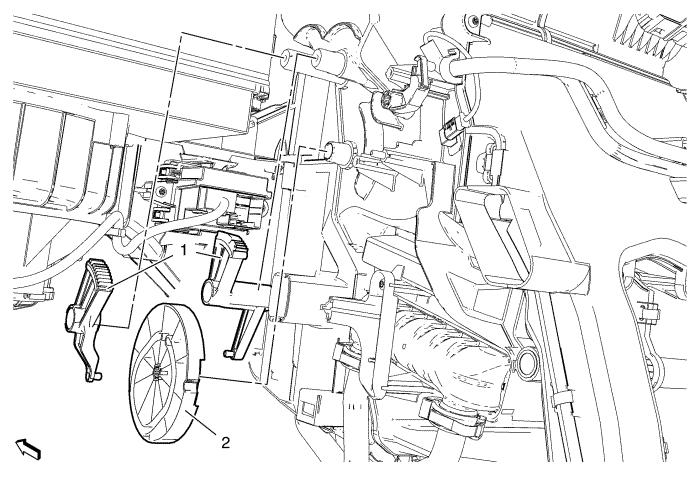

Mode Control Cam Replacement (Right Hand Drive) Callout Component Name Procedures Remove mode control cam actuator mounting plate. Refer to Mode Control Cam Actuator Mounting Plate Replacement . 1 Vent Valve Lever (Qty: 2) 2 Heater and Air Conditioning Mode Control Cam Procedure Lubricate heater and air conditioning mode control cam in order to assure proper operation. Refer to Adhesives, Fluids, Lubricants, and Sealers .
