Transmission Front Mount Replacement (Manual Transmission - M32-6)

Make

Vauxhall

Model

Astra J

Section

Manual Transmission - M32-6 › Repair Instructions › Transmission Front Mount Replacement

Transmission/TransaxleTransmission Front Mount Replacement

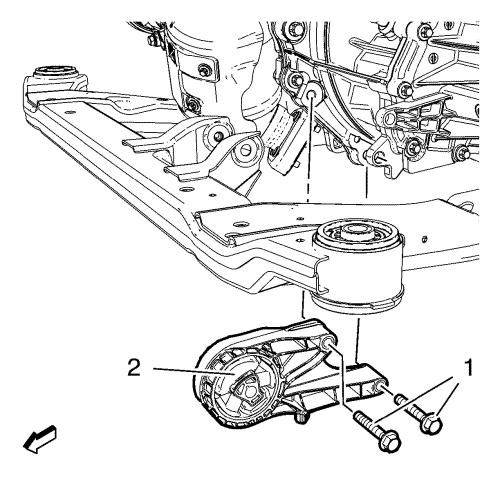

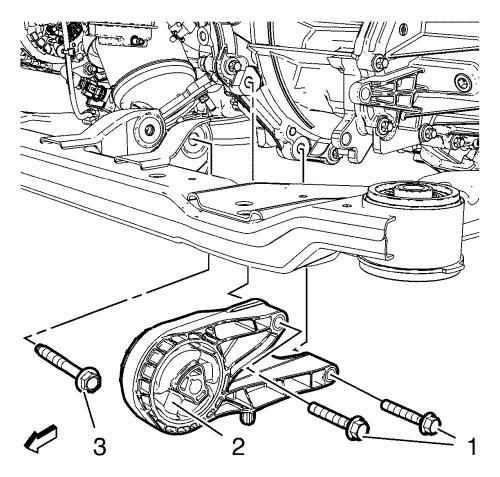

Transmission Front Mount Replacement Removal Procedure 1. Raise vehicle. Refer to Lifting and Jacking the Vehicle . 2. If equipped, remove the front compartment insulator. Refer to Front Compartment Insulator Replacement .            3. Remove transmission front mount bolt (1).            4. Remove 2 transmission front mount bolts (1). 5. Remove transmission front mount (2). Installation Procedure            1. Install transmission front mount (2). Caution: Refer to Fastener Caution . 2. Install 2 transmission front mount bolts (1) and tighten to 100 N·m (74 lb ft) .            3. Install transmission front mount bolt (1) and tighten to 100 N·m (74 lb ft) . 4. If equipped, install the front compartment insulator. Refer to Front Compartment Insulator Replacement . 5. Lower vehicle.
