Transmission Mount Bracket Replacement - Rear (Manual Transmission - M32-6)

Make

Vauxhall

Model

Astra J

Section

Manual Transmission - M32-6 › Repair Instructions › Transmission Mount Bracket Replacement - Rear

Transmission/TransaxleTransmission Mount Bracket Replacement - Rear

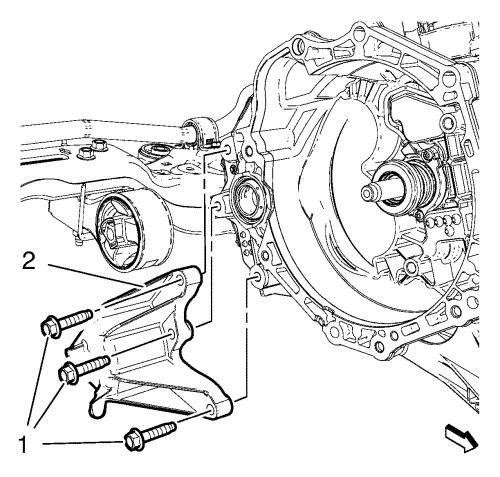

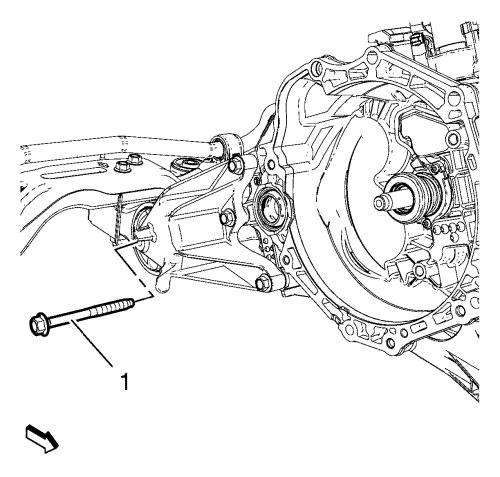

Transmission Mount Bracket Replacement - Rear Removal Procedure 1. Raise vehicle. Refer to Lifting and Jacking the Vehicle . 2. Support rear of powertrain using a suitable jack stand.            3. Remove transmission rear mount bolt (1).            4. Remove 3 transmission rear mount bolts (1). 5. Remove transmission rear mount (2). Installation Procedure            1. Install transmission rear mount (2). Caution: Refer to Fastener Caution . 2. Install 3 transmission rear mount bolts (1) and tighten to 100 N·m (74 lb ft) .            3. Install transmission rear mount bolt (1) and tighten to 100 N·m (74 lb ft) . 4. Remove jack stand. 5. Lower vehicle.
