Sliding Roof › Repair Instructions › Control Cables, Replace Both
Body EquipmentControl Cables, Replace Both



Control Cables, Replace Both

Object Number: 616191 Size: DEFAULT  Remove, Disconnect

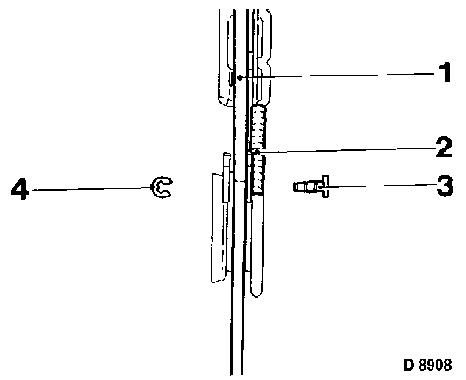

Control unit - see operation "Control Unit, Remove and Install". Water deflector panel, drive, pull out side guide with actuation cable. Prise off retaining washer (4). Pull out connecting pin (3). Remove actuation cable with guide (2) from side guide (1).

Object Number: 616201 Size: DEFAULT  Important!

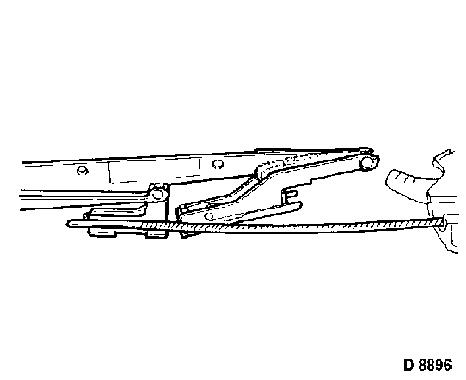

Object Number: 2384928 Size: DEFAULT

Always replace actuation cables in pairs!

Object Number: 2384935 Size: DEFAULT





Object Number: 616192 Size: DEFAULT  Install, Connect

Actuation cables with guide to side guide, insert actuation cables in guide rail. Side guide.

Object Number: 616198 Size: DEFAULT  Adjust

Basic adjustment of both actuation cables - see operation "Both Actuation Cables, Basic Adjustment". Drive.

Object Number: 616192 Size: DEFAULT  Install, Connect

Water deflector panel, drive, control unit.

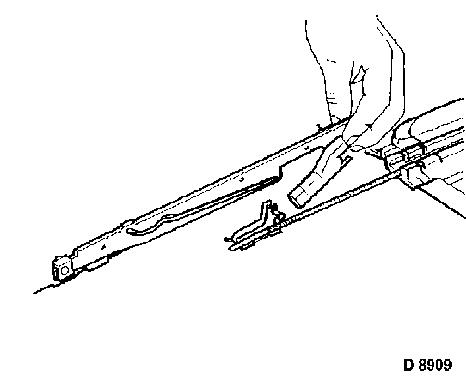

Object Number: 2384936 Size: DEFAULT
