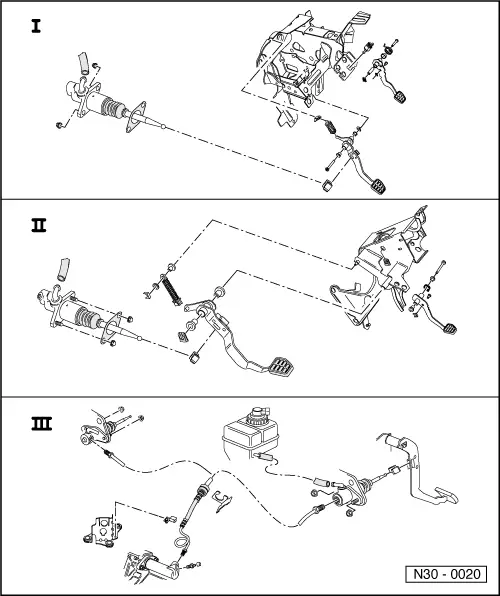

•      I -     Assembly overview - pedal cluster (LHD vehicles)
  =>Page 30-2
•      II -     Assembly overview - pedal cluster (RHD vehicles)
  =>Page 30-8
•      III -     Assembly overview - hydraulics
  =>Page 30-13

Notes:

• ◆ Disconnect battery earth strap.
• ◆ For vehicles with coded radio obtain radio code.
• ◆ Lubricate all bearings and contact surfaces with MoS2 grease.
• ◆ Before working on pedal cluster remove left storage shelf.

=> General body repairs; Repair group 70; Removing and installing dash panel
