Braking power adjustment - assembly overview

Make

Volkswagen

Model

Polo Mk4

Section

Brake systems › Brakes, hydraulics, regulator, servo › Braking power adjustment - assembly overview

Running gearBraking power adjustment - assembly overview

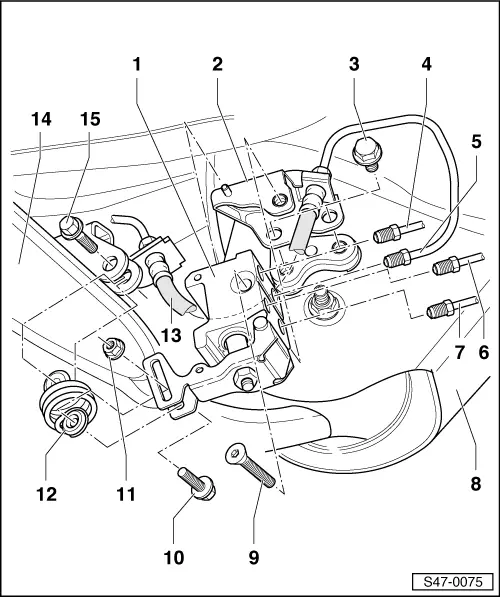

Braking power adjustment - assembly overview Braking power adjustment on vehicles without ABS

1 -	Braking power adjustment

q	Adjust → Chapter

q	Check → Chapter

2 -

Support

3 -	Self-locking hex head nut

q

replace

q

17 Nm

4 -	Brake pipe connection

q	Right rear wheel brake cylinder

q	Tightening torque for the brake pipes 14 Nm.

5 -	Brake pipe connection

q	Left rear wheel brake cylinder

q	Tightening torque for the brake pipes 14 Nm.

6 -	Brake pipe connection

q	Brake cylinder/floating plunger loop for the hydraulic unit

q	Tightening torque for the brake pipes 14 Nm.

7 -	Brake pipe connection

q	Brake cylinder/pressure plunger loop to the hydraulic unit

q	Tightening torque for the brake pipes 14 Nm.

8 -	Retaining support

9 -	Internal hex head screw

q

20 Nm

10 -	Hexagonal head screw

11 -

Nut

q

20 Nm

12 -	Drawspring

13 -	Brake hose

14 -

Axle body

15 -	Hexagonal head screw,

q

16 Nm

l
