CHECKING COMPONENTS

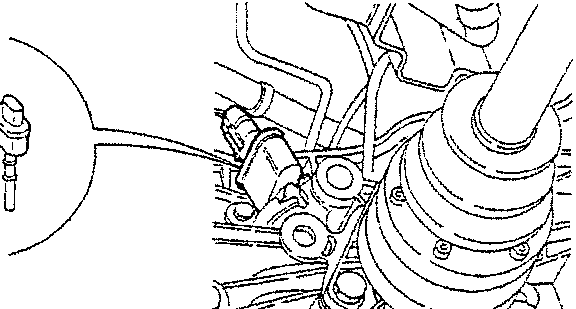

Speedometer sensor L17

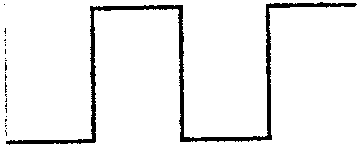

Output signal (with car on the move): voltage at pin 2: pulses per turn

NOTE: The sensor differs, in the shape and internal functioning for the different options, but the output signal is the same.

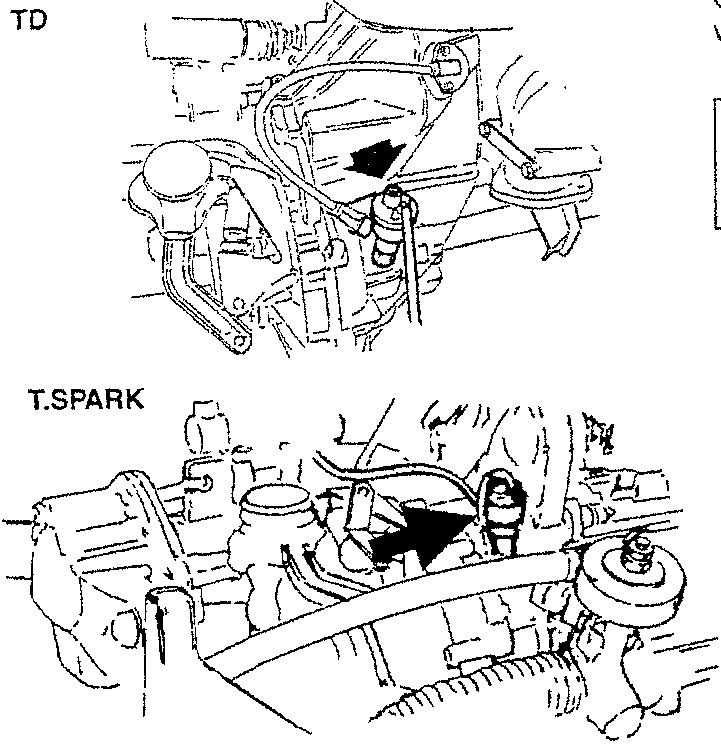

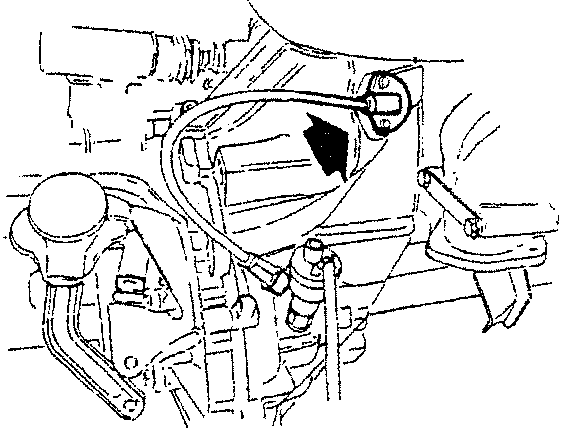

Rpm sensor L16 (TD only)

SPECIFICATIONS
Magnetic induction sensor
Coil resistance	680 Ω ± 15%
Inductance	295 mH ± 10%
Gap on flywheel ring gear	0.25 ÷ 1.3 mm
