145 electrical system diagnosisComponents and Connectors

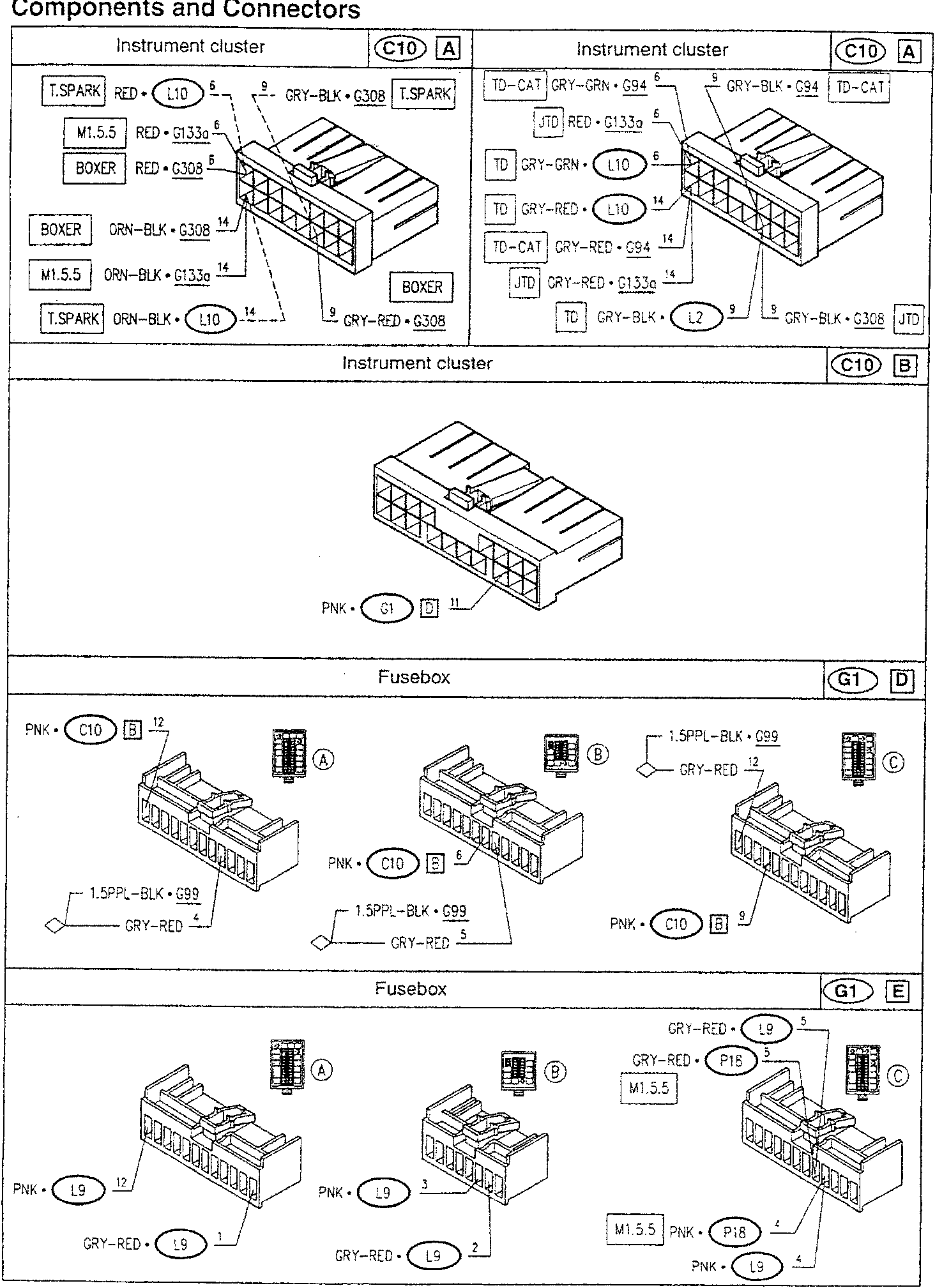

Components and Connectors

Instrument cluster	C10 A	Instrument cluster	C10 A
T.SPARK RED • L10	6	TD-CAT GRY-GRN • G94	6
M1.5.5 RED • G133a	6	JTD RED • G133a	6
BOXER RED • G308	5	TD GRY-GRN • L10	6
BOXER ORN-BLK • G308	14	TD GRY-RED • L10	14
M1.5.5 ORN-BLK • G133a	14	TD-CAT GRY-RED • G94	14
T.SPARK ORN-BLK • L10	14	JTD GRY-RED • G133a	14
GRY-BLK • G308	9	GRY-BLK • G94	9
GRY-RED • G308	9	GRY-BLK • G308	9

Instrument cluster	C10 B
PNK • G1 D	11

Fusebox	G1 D
PNK • C10 B	12
1.5PPL-BLK • G99	12
GRY-RED	4
PNK • C10 B	6
1.5PPL-BLK • G99	5
GRY-RED	5
PNK • C10 B	9
1.5PPL-BLK • G99	12
GRY-RED	12

Fusebox	G1 E
GRY-RED • L9	5
GRY-RED • P18	5
M1.5.5	5
PNK • L9	4
PNK • L9	4
