Components and Connectors
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Instrument Cluster › Components and Connectors
145 electrical system diagnosisComponents and Connectors

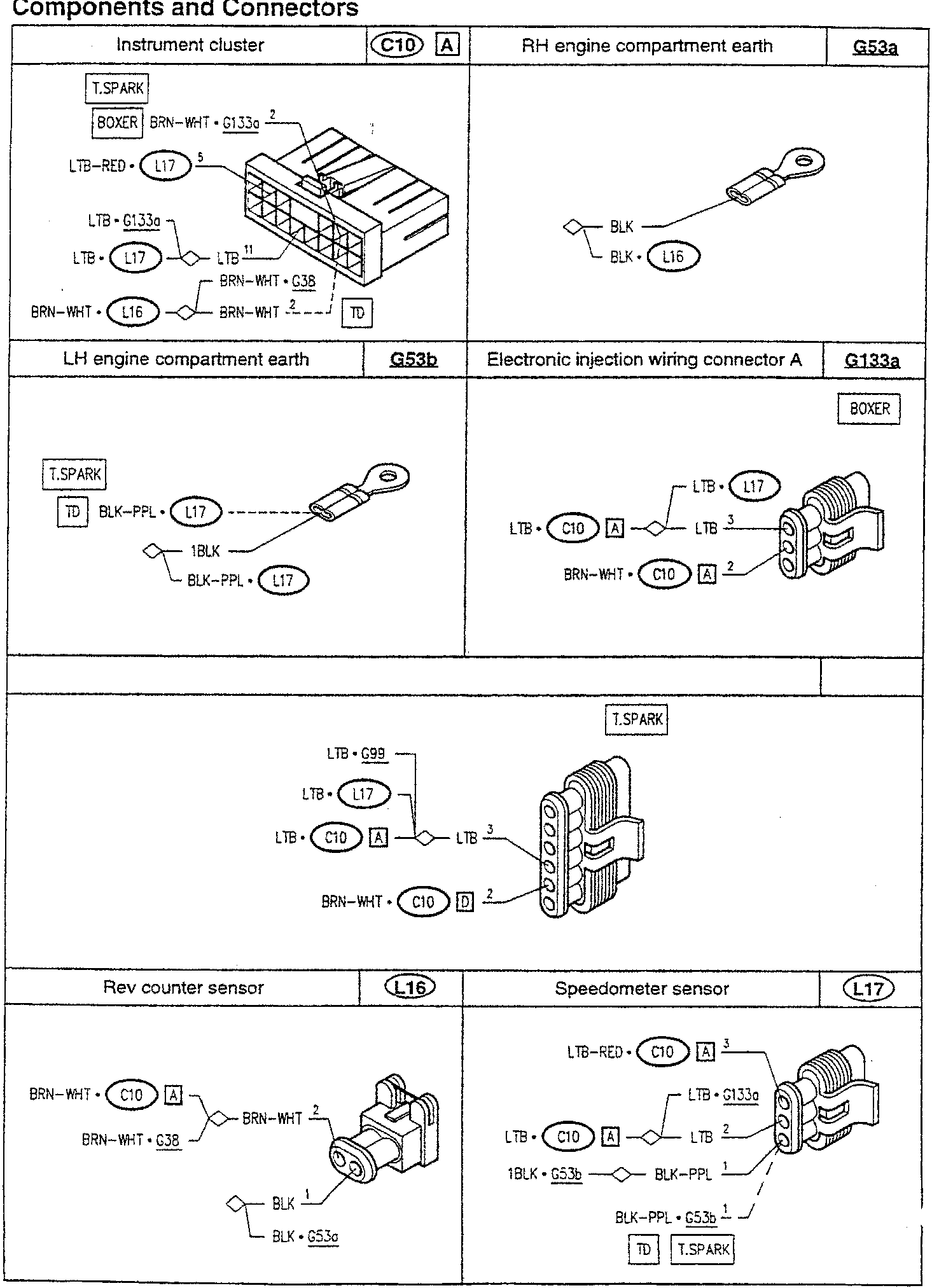

Components and Connectors
| Instrument cluster | C10 A | RH engine compartment earth | G53a |
|---|---|---|---|
|
T.SPARK BOXER BRN-WHT • G133a2 LTB-RED • L175 LTB • G133a LTB • L17 BRN-WHT • L16 BRN-WHT • G38 TD |
BLK BLK • L16 |
|
| G53a |
| LH engine compartment earth | G53b | Electronic injection wiring connector A | G133a |
|---|---|---|---|
| T.SPARK TD BLK-PPL • L17 1BLK BLK-PPL • L17 |
G133a | ||
| BOXER |
| Rev counter sensor | L16 | Speedometer sensor | L17 |
|---|---|---|---|
| BRN-WHT • C10 A BRN-WHT • G38 BLK • G53a |
L17 | ||
| LTB-RED • C10 A3 LTB • G133a LTB • C10 A 1BLK • G53b BLK-PPL • G53b1 TD T.SPARK |
