145 electrical system diagnosisMinimum oil pressure contact L2

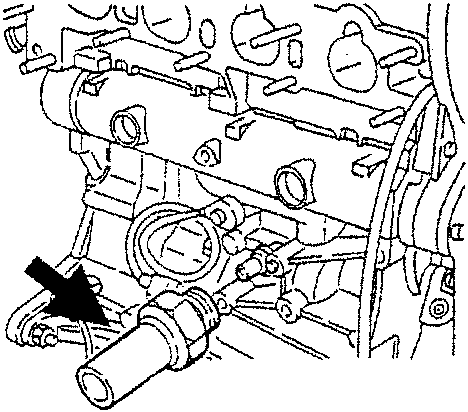

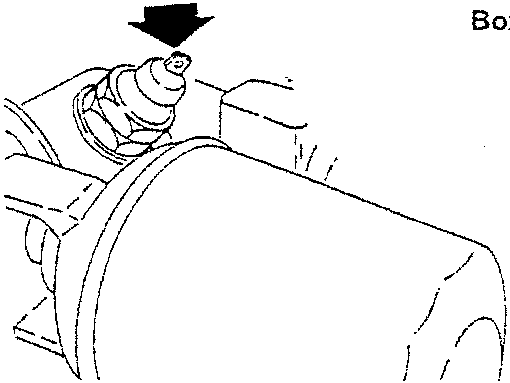

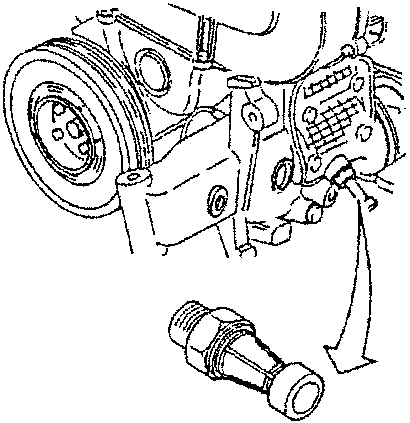

Minimum oil pressure contact L2
| F5 | SPECIFICATIONS |
|---|---|
| contact closes (pressure falling) | 0.2 ÷ 0.5 bar |
| contact opens (pressure rising) | 0.2 ÷ 0.5 bar |
Min. brake fluid level switch H17
| F6 | SPECIFICATIONS |
|---|---|

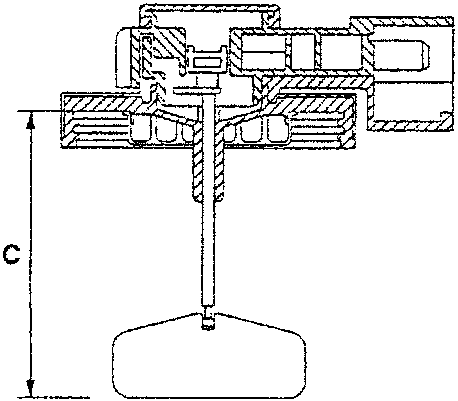

| The float closes the contact if dimension C (see figure) exceeds 40 ± 1 mm. | |
NOTA: to check the operation of the swithc, it is sufficient to lightl press on the upper end of the cover: in this case the contact closes and it is possible to check whether the warning light is working properly.
