1.9 JTD engine (1910)Air cleaner

AIR CLEANER

CHANGING THE AIR CLEANER CARTRIDGE

  1. Slacken the clamp fastening the corrugated sleeve to the air cleaner cover.
  2. Slacken the fastening screws and remove the air cleaner cover.
  3. Remove the air cleaner cartridge.

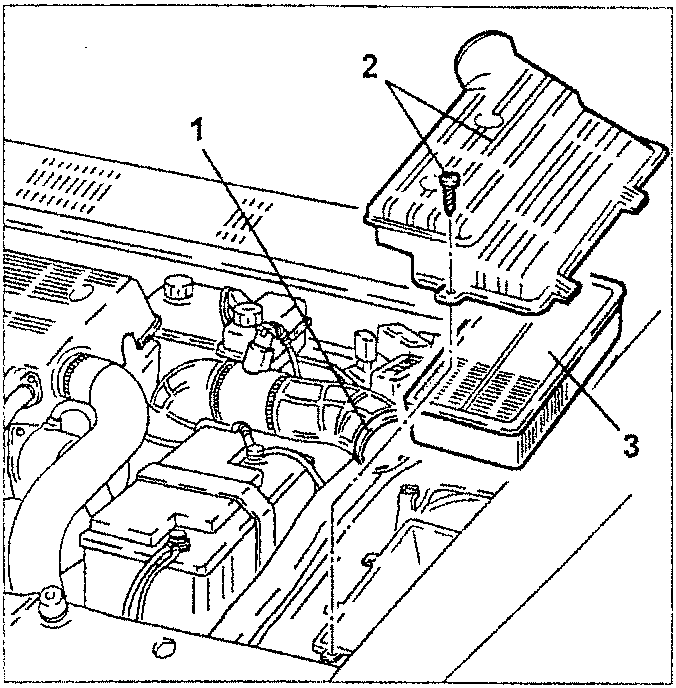

Air cleaner assembly with numbered parts 1, 2, 3

WARNING: Any attempt to clean the cleaner may damage it, risking compromising correct operation of the supply system.

  • Carefully clean the air cleaner cartridge container.
  • Check the conditions of the cartridge and, if necessary, replace it.
  • Assemble the air cleaner cover and fasten it with its screws.
  • Tighten the clamp fastening the corrugated sleeve to the air cleaner cover.

REMOVAL/REFITTING

  • Set the car on a lift.
  • Remove the left front wheel, dust guard and wheel arch.
  1. Slacken the clamp fastening the corrugated sleeve to the air cleaner cover.
  2. Slacken the fastening screws and remove the air cleaner cover.
  3. Remove the air cleaner cartridge.
  4. Slacken the fastening screws of the air cleaner box.

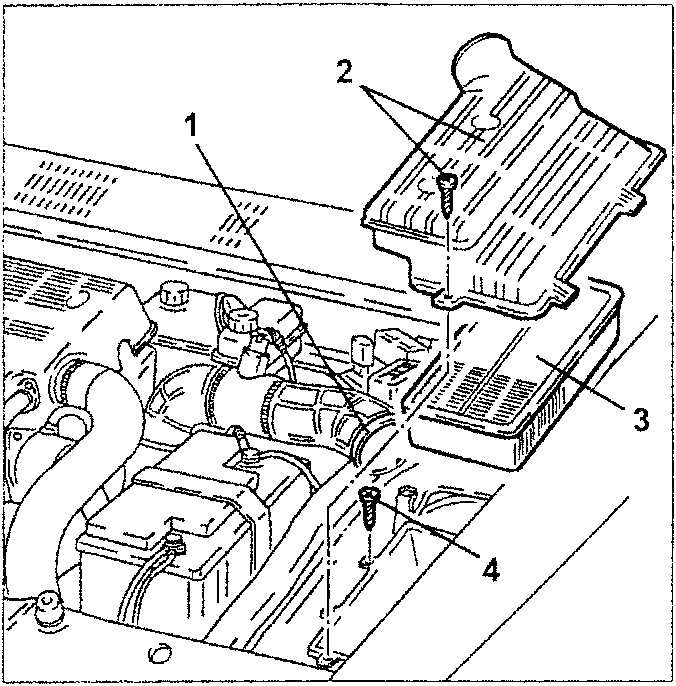

Air cleaner assembly with numbered parts 1, 2, 3, 4
  1. Remove the air cleaner box withdrawing it from the wheel arch after disconnecting it from the air inlet sleeve.

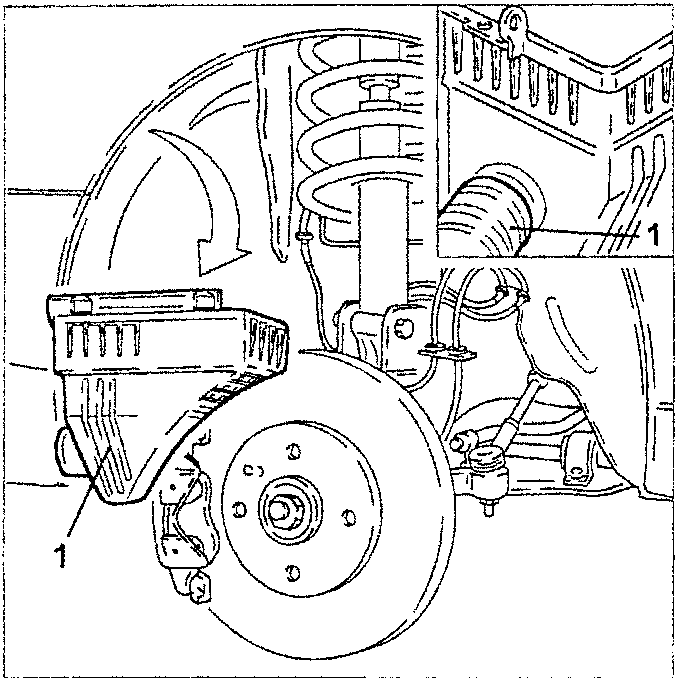

Left front wheel and suspension components with numbered part 1
