Turbocharger

TURBOCHARGER

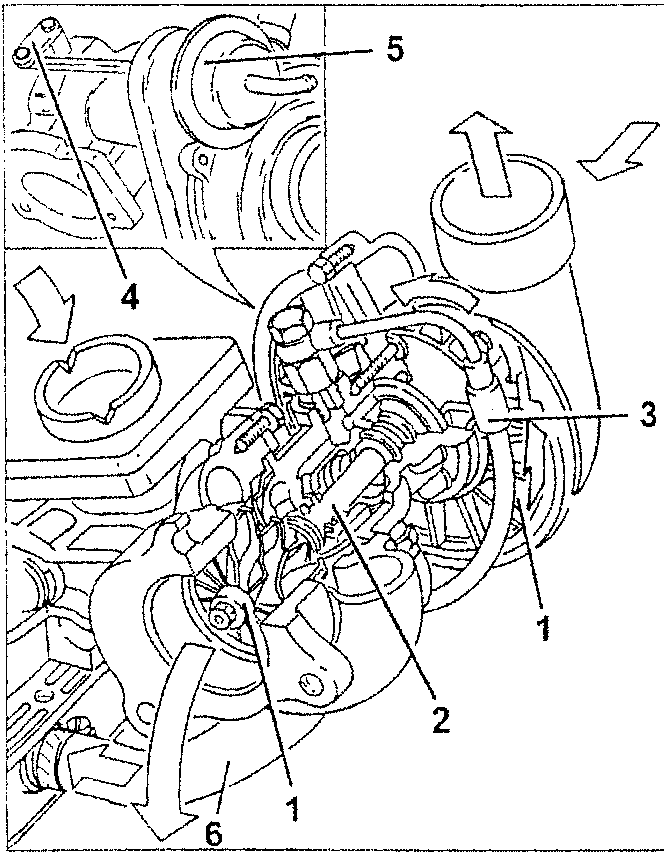

This mainly comprises two impellers (1) keyed onto the same shaft (2), which turns on floating bearings lubricated through a branch (3) of the engine lubricating circuit.

The oil used disperses part of the great amount of heat released to the turbine by the exhaust gas.

On the turbocharger a WASTE-GATE valve (4) is fitted which is controlled by a pneumatic actuator (5) which makes it possible to shutter the passage of exhaust gas to the turbine depending on the engine's need of power/torque.

1. Impellers
2. Shaft
3. Oil delivery pipe to turbocharger
4. WASTE-GATE valve
5. Pneumatic actuator
6. Oil outlet pipe from turbocharger

REMOVAL/REFITTING

• Set the car on a lift.
• Make sure that the ignition switch is at the "STOP", then disconnect the battery (-) terminal.

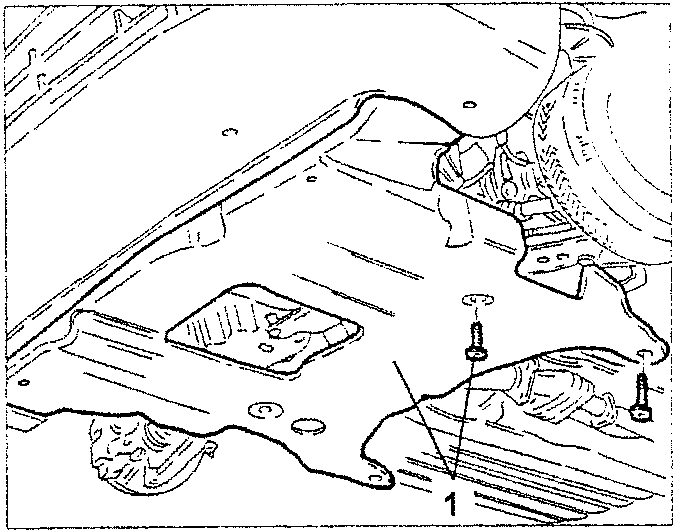

1. Slacken the fasteners and remove the under engine guard.

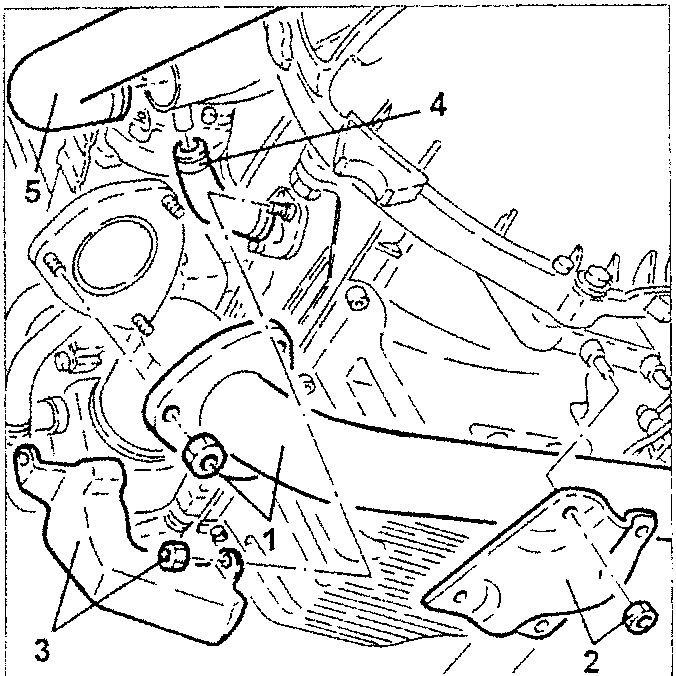

1. Slacken the nuts fastening the front section of the exhaust pipe to the exhaust manifold.
2. Slacken the fastening nuts and remove the reinforcement plate.
3. Slacken the fastening nuts and remove the guard of the oil outlet pipe from the turbocharger.
4. Disconnect the oil outlet pipe from the turbocharger.
5. Disconnect the air delivery sleeve to the heat exchanger at the turbocharger.
