Turbocharger (page 2 of 2)

Make

Alfa Romeo

Model

145/146 Engines, 146 Bodywork and Engine Overhaul Manual

Year

1994–2001

Section

Air supercharging system

1.9 JTD engine (1910)Turbocharger · page 2 of 2

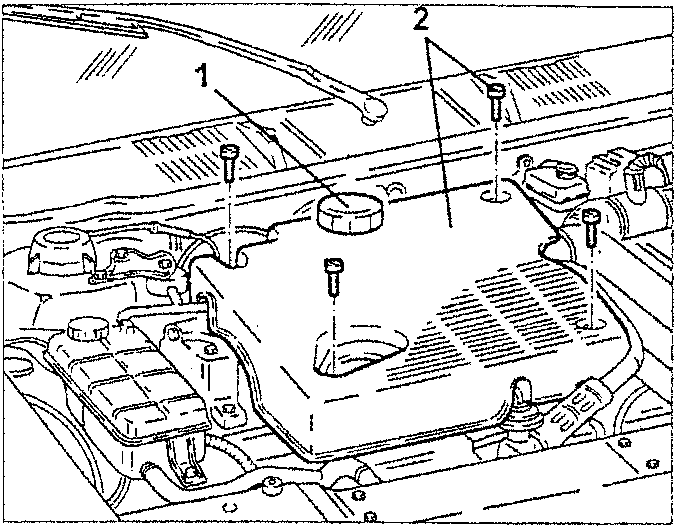

1. Remove the engine oil filler cap.
2. Slacken the fastening screws and remove the engine cover.

• Refit the engine oil filler cap.

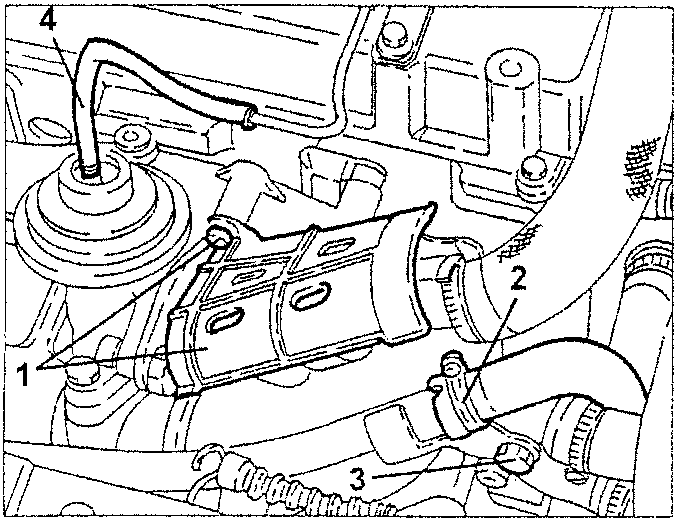

1. E.G.R. valve cover
2. fluid delivery sleeve to the engine oil heat exchanger from the stiff pipe
3. fastening screw of the stiff coolant fluid delivery pipe to the engine oil heat exchanger
4. vacuum pipe from the E.G.R. valve

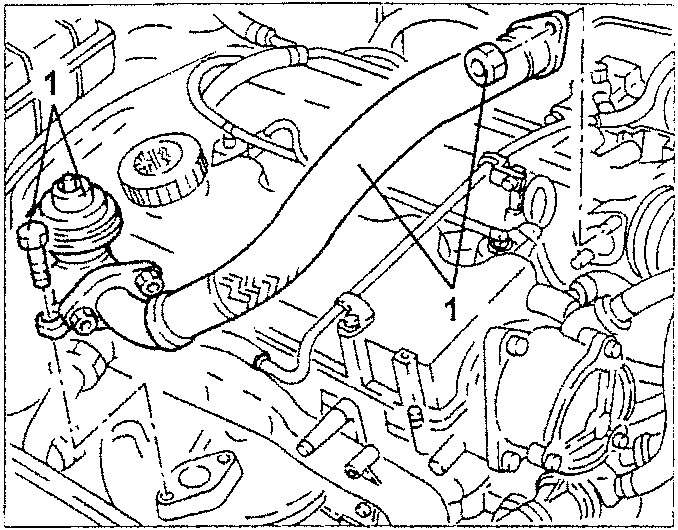

1. Slacken the nuts and screws and remove the E.G.R. valve complete with exhaust gas re-circulation pipe.

• Remove the seals.

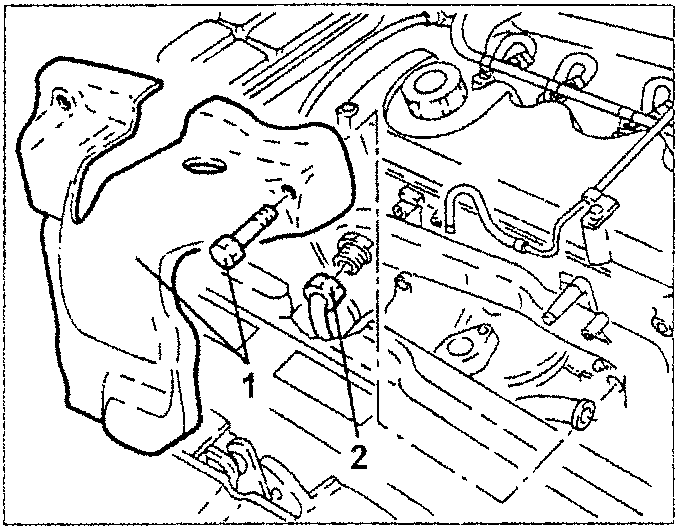

1. Slacken the fastening screws and remove the heat shield from the exhaust manifold.
2. Disconnect the engine oil heat exchanger outlet pipe from the stiff water pump inlet pipe.

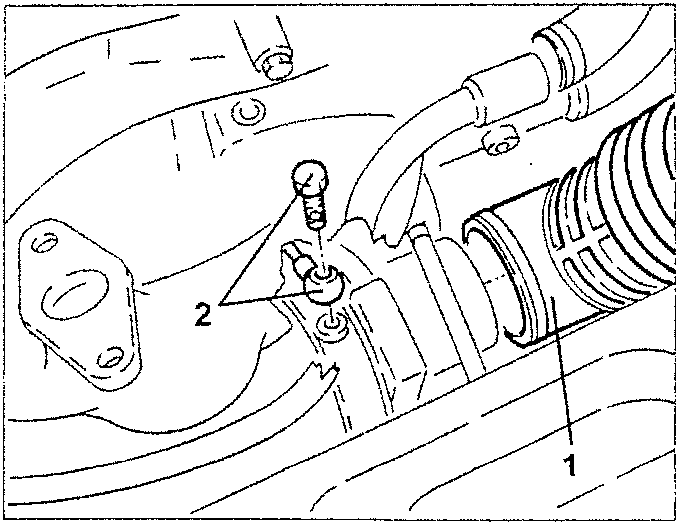

1. Disconnect the air inlet sleeve from the turbo-charger.
2. Slacken the coupling and disconnect the oil inlet pipe from the turbocharger.
