Air flow meter

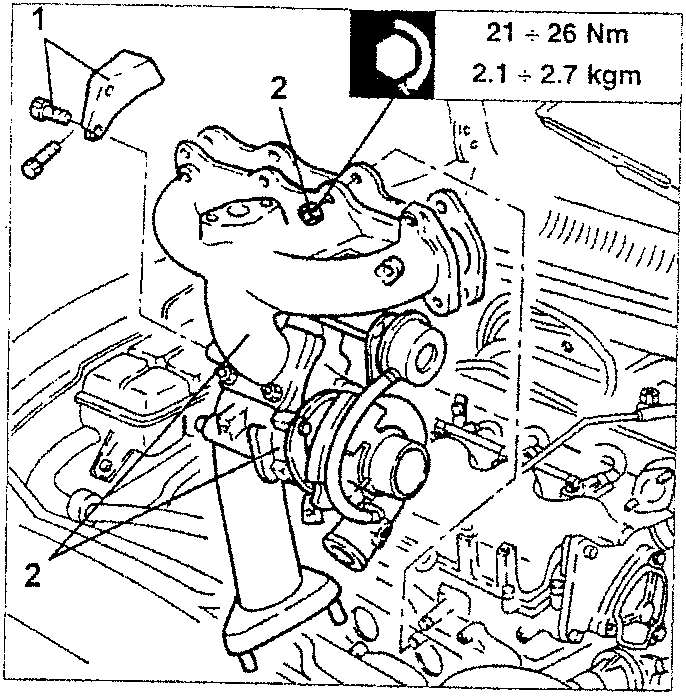

1. Slacken the fastening screws and remove the bracket connecting the turbocharger to the crank-case.
2. Slacken the nuts and remove the turbocharger complete with exhaust manifold and exhaust pipe connection sleeve.

21 ÷ 26 Nm
2.1 ÷ 2.7 kgm

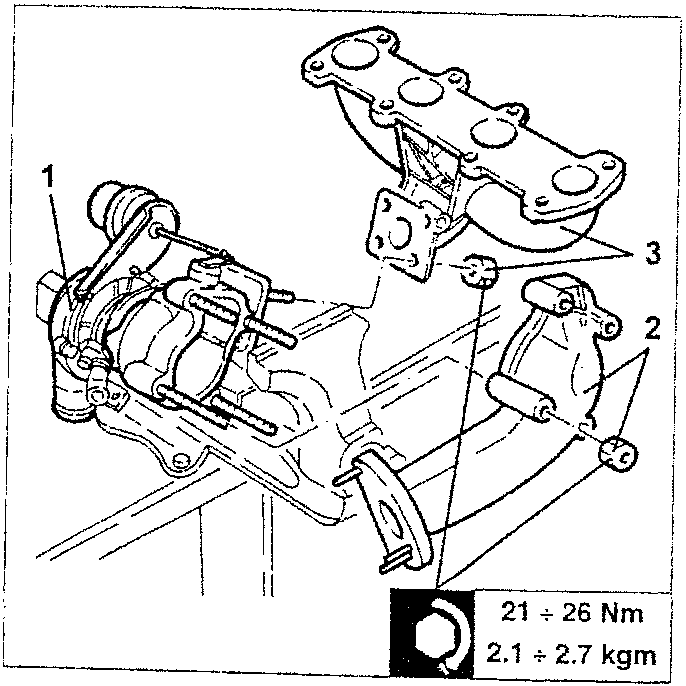

1. Put the turbocharger in a vice clamp on the bench.
2. Slacken the fastening nuts and remove the exhaust pipe connection sleeve.
3. Slacken the fastening nuts and separate the exhaust manifold from the turbocharger.

21 ÷ 26 Nm
2.1 ÷ 2.7 kgm

AIR FLOW METER

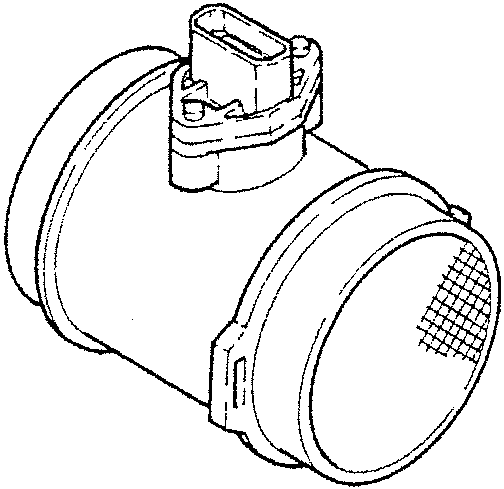

The air flow meter is located on the air intake sleeve and it is of the "heated film" type.

The intake air temperature sensor is incorporated in the air flow meter.

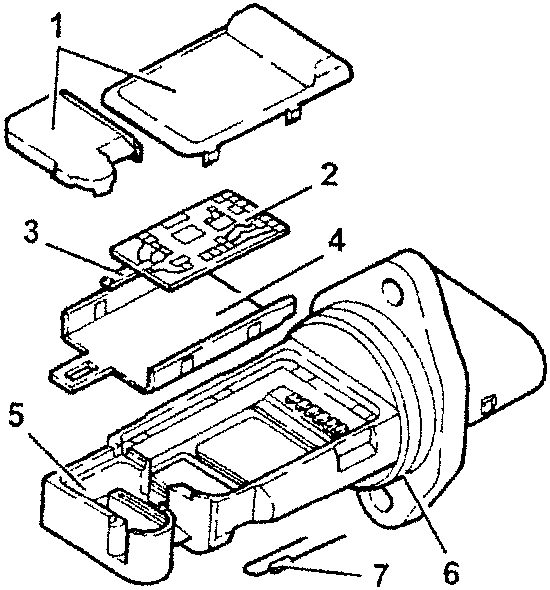

1. Covers
2. Electronic board
3. Sensor
4. Support plate
5. Support
6. O-Ring
7. Temperature sensor

WARNING: The air flow meter cannot be disassembled.
