Adjusting the position the sunroof glass

After refitting adjust the vertical and crosswise position.

ADJUSTING THE POSITION THE SUNROOF GLASS

NOTA: To adjust the position of the sunroof glass two operators are required, one operating inside the vehicle and one outside.

The operator on the outside centres the glass in relation to its housing on the car roof and flush with the roof surface; the operator on the inside tightens the adjustment screws.

• Open the roof to the "quarterlight" position.
• Remove the plates protecting the sliding mechanism.
• Close the roof.

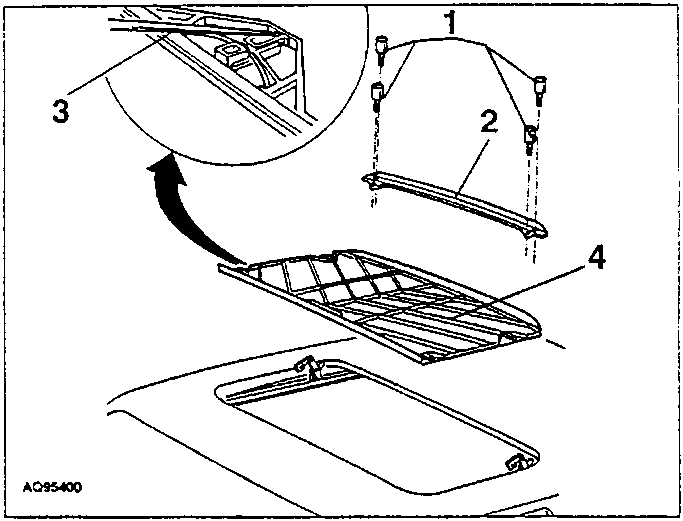

1. Slacken the six crosswise adjustment nuts.
2. Position the glass correctly.
3. Tighten the six nuts.
4. Slacken the four vertical roof adjustment screws.
5. Position the glass so that it is flush with the car roof surface.
6. Tighten the four screws.

STROKE LIMIT MICROSWITCH

REMOVAL/REFITTING

• Completely open the sunroof to the "concealed" position.
• Disconnect the battery negative pole (-).

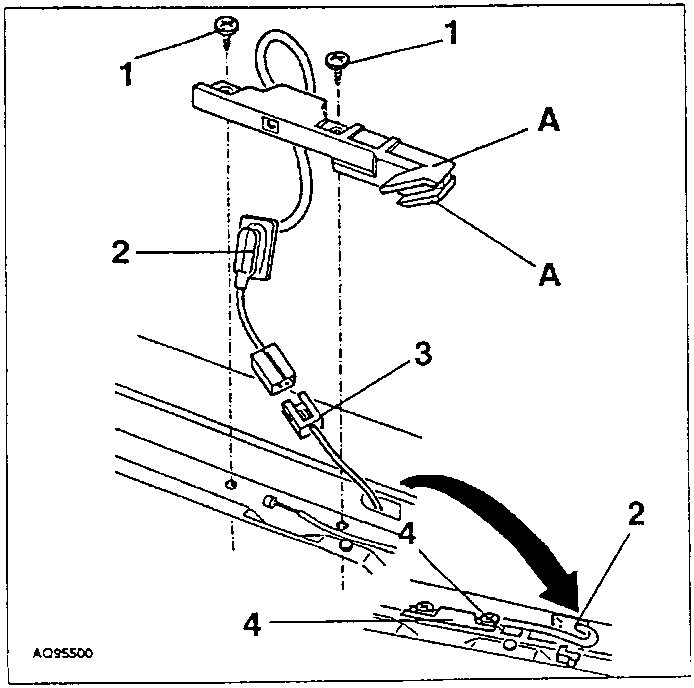

1. Slacken the two screws fastening the microswitch to the left-hand guide.
2. Remove the rubber protection from the cable fastened to the guide.
3. Withdraw the cable and disconnect the microswitch connector.
4. Remove the microswitch.

When refitting correctly position the cable so that it fits in the housing without hindering the movement of the flexible rack drawing the sunroof. Correctly couple the guide (A) on the microswitch to the pin of the sliding guide.

SLIDING BLIND

REMOVAL/REFITTING

• Remove the sunroof (see specific paragraph).
• Set the blind to the closed position.

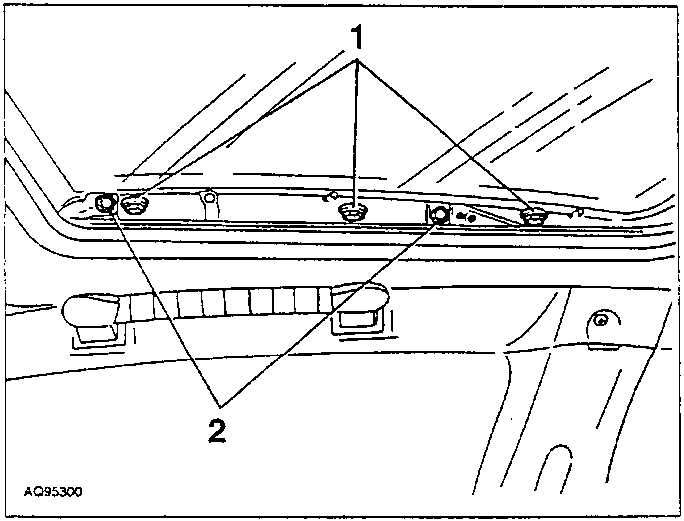

1. Slacken the four rear screws fastening the rib.
2. Remove the rib.
3. Using a screwdriver release two of the four clips fastening the blind to the sunroof guides (on the same side of the vehicle).
4. Remove the sliding blind.
