Operation

OPERATION

As mentioned previously, the possible movements of the sunroof are two closing strokes and two opening strokes, for the two "quarterlight" and completely open "concealed" conditions the device makes possible.

The following paragraphs illustrate and describe the positions of the system during the complete operating cycle, starting from the sunroof completely open position up to return to the same position through the sunroof closed and "quarterlight" open positions.

NOTA: because of the complexity of the device it is advisable to follow the description of how it works observing it directly on the car.

Pressing the pushbutton, the sunroof moves from the completely open "concealed" position to the closed position.

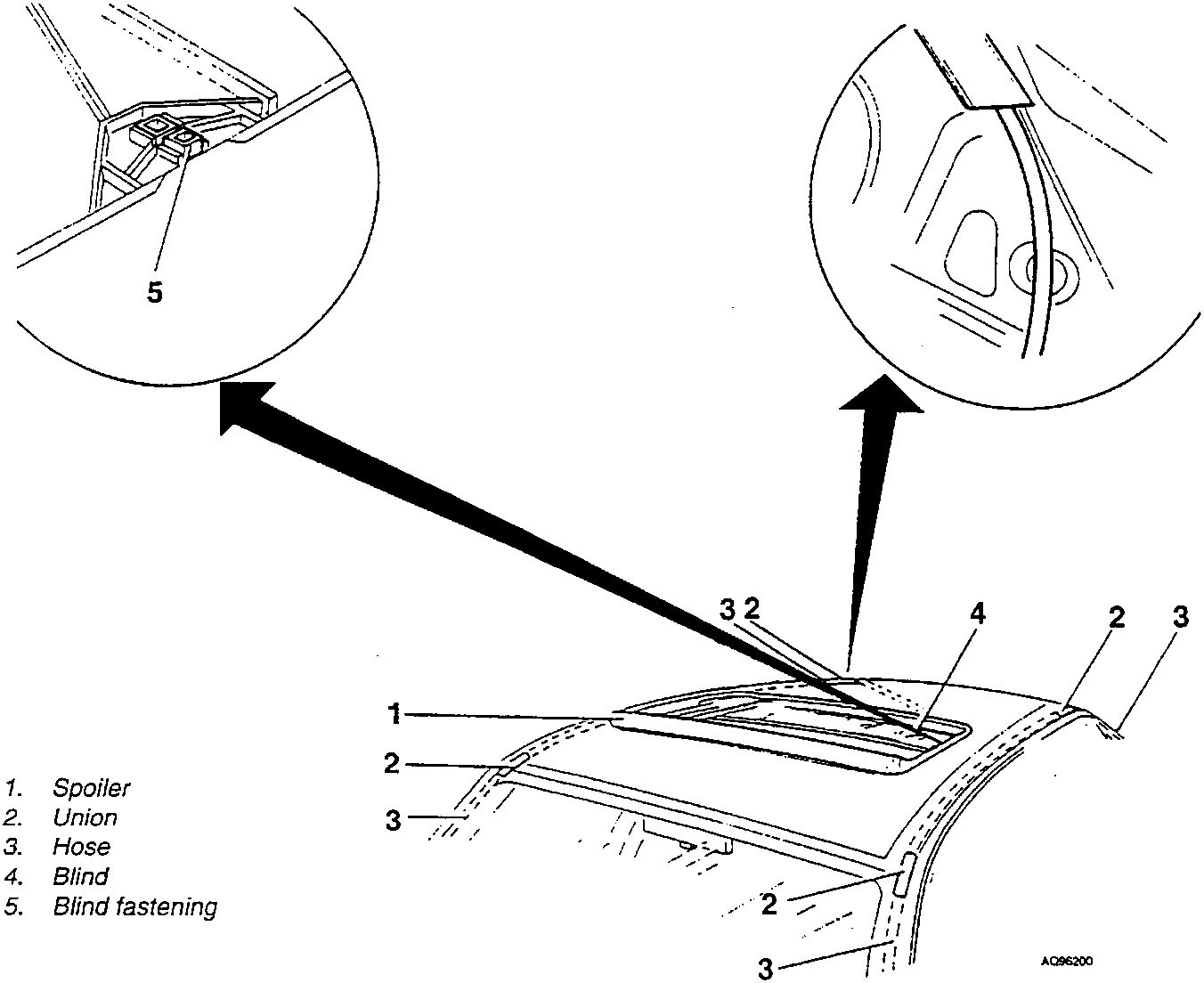

1. Spoiler
2. Union
3. Hose
4. Blind
5. Blind fastening
