Sunroof electric motor

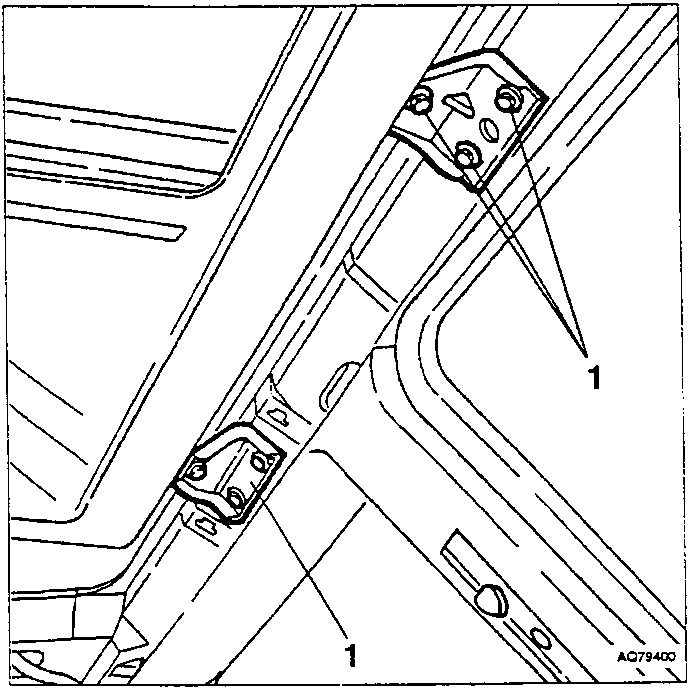

1. Slacken and remove the screws fastening the brackets to the sunroof and then remove the brackets.

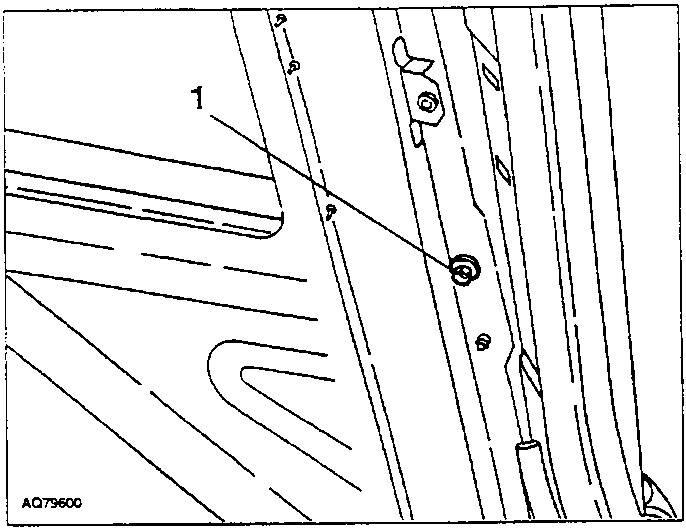

1. Slacken the six screws fastening the sunroof to the roof panel.

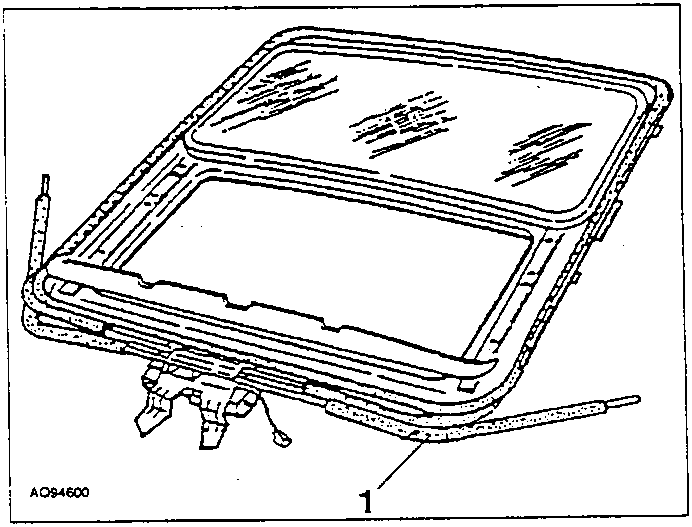

1. Remove the sunroof complete, withdrawing it through the front door.

When refitting the sunroof check the presence of the perimeter seals, the tubular ones on the rack guide pipes and the vibration damper caps on the centering pins; for refitting, reverse the sequence followed for removal. After refitting, check the alignment of the roof and that it works properly.

SUNROOF ELECTRIC MOTOR

REMOVAL/REFITTING

NOTA: in the event of a failure to the electric motor, the sunroof can be moved to the position required, operating the motor by hand (see: EMERGENCY MANUAL OPERATION OF THE ELECTRIC SUNROOF)
