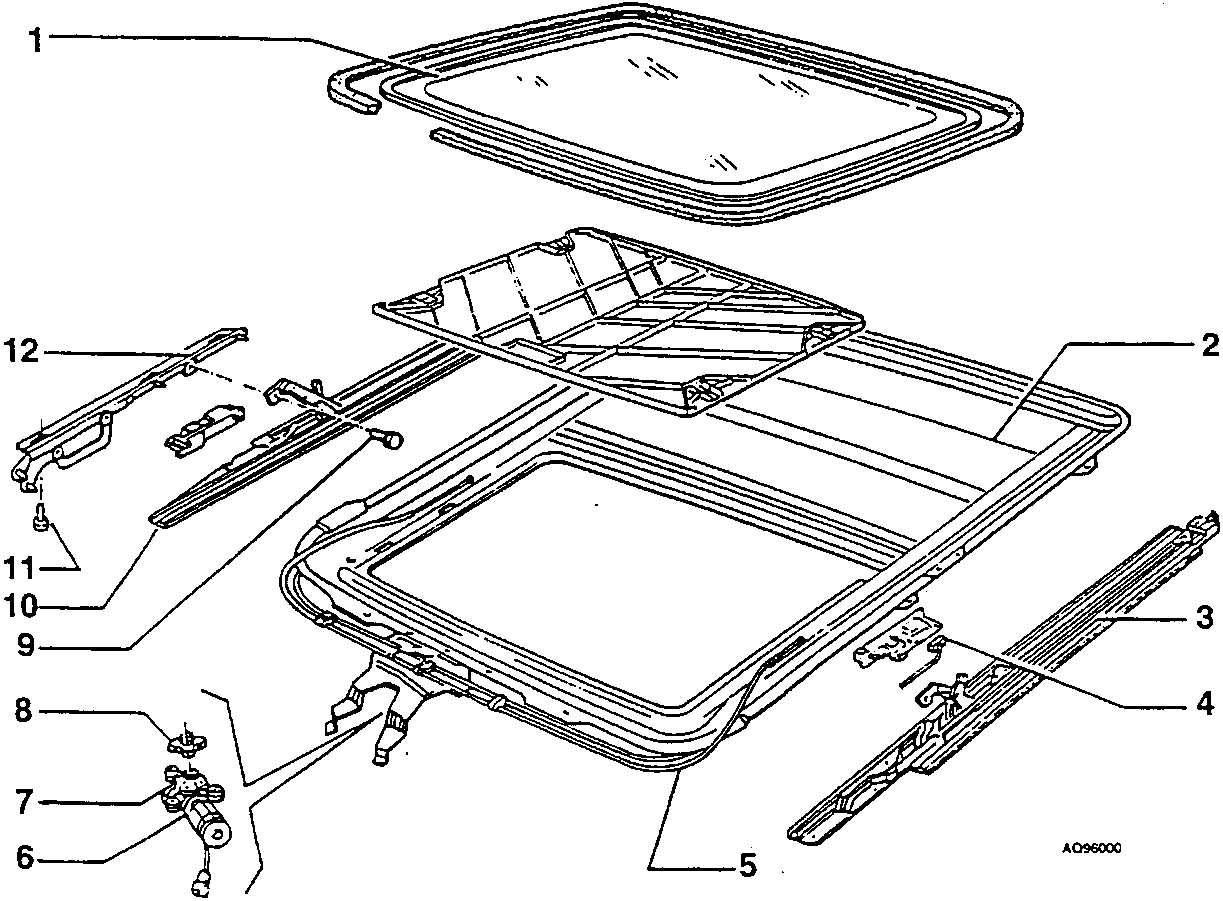

Sunroof components

1. Glass holder frame
2. Guides support frame
3. Left-hand guide
4. Microswitch
5. Flexible rack
6. Motor
7. Driving gear
8. Gear
9. Bracket/runner fastening screw
10. Right-hand guide
11. Frame bracket fastening screw
12. Carrier bracket

Sunroof components

The cam (1) for connecting the carrier bracket (3) is machined on the front of the runner (A), and the puller pins (4 and 5) which run respectively in cams (6 and 15) are located on the rear.

The runner is connected to the bracket (3) by pin (2) and its movements are determined through this connection. The end of the flexible rack (8) engages on the intermediate runner (B) which draws the complete kynematism.

The element (7) for operating the microswitch is positioned on the left centre runner.

Cams (9 and 10) are machined on the rear section of the runner. These cams determine the movement of the pantograph device (11) located on the rear runner.

The rear runner (C) comprises two components (11 and 13) which are strictly inter-connected by pin (14).

The front section (11) consists of the pantograph device which enables "quarterlight" opening of the sunroof, the rear section (13) is the support for the mobile rib (12) and it is the piece which counters the rear stroke limit.
