Section T2 - T3

Pressing the pushbutton again, the sunroof passes from the closed position to the "quarterlight" open position.

Section T2 - T3

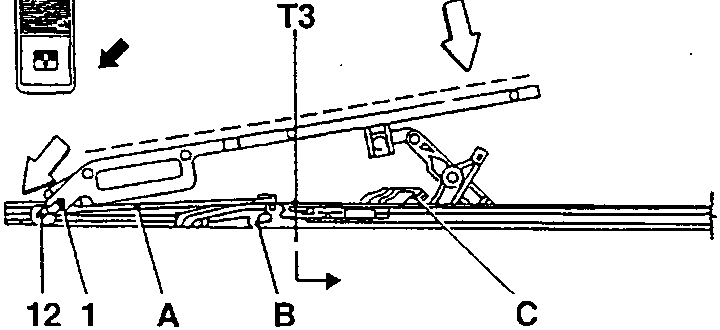

The intermediate runner (B) goes through the last section of its movement completing the raising of the pantograph. At the front, pin (1) reaches the upper stroke limit in cam (12) of the front runner (A). Once the pantograph stroke limite has been reached, an overcurrent relay stops the motor. At this point, to complete the cycle it is necessary to press the pushbutton again to invert the direction of rotation of the motor.

Section T3 - T2

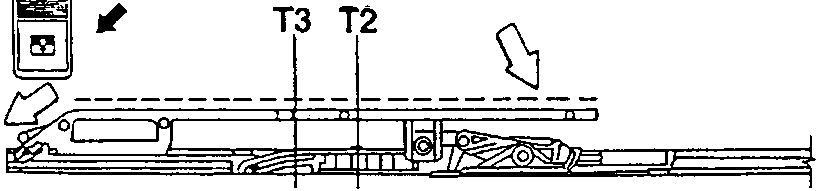

The sunroof goes back along the closing section from the "quarterlight" open position until the microswitch stops it.

Section T2 - T0

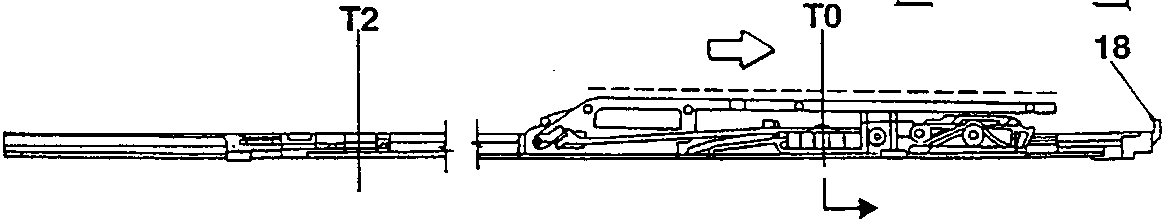

After lowering to make access possible in the space between the roof panel and the roof lining (section T2 - T1), it runs along the guides until it reaches the rear stroke limit (18), where the overcurrent relay stops the motor (sunroof completely open in the "concealed" position).

1. Pin (1)
2. Cam (12)
3. Front runner (A)
4. Intermediate runner (B)
5. Component C
6. Rear stroke limit (18)
