Auxiliary component belts

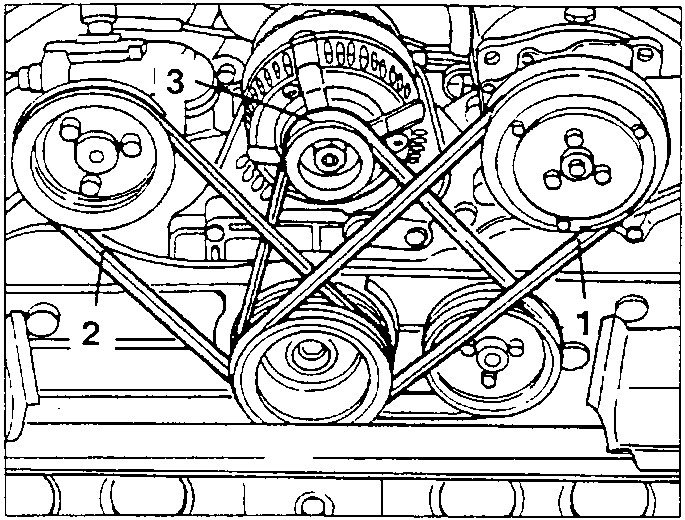

AUXILIARY COMPONENT BELTS

1. Conditioner compressor drive belt
2. Power steering drive belt
3. Alternator - water pump drive belt

NOTE: When checking the belt tension, check that the belts are intact, and that they are free of:

• cuts
• cracks
• material surface wear (smooth and shiny)
• dry or stiff parts (lack of adherence).

In the event of one of the above defects, change the belt.

The contact of the belts with oil or solvents can damage the elasticity of the actual belt rubber and reduce its adherence.

Conditioner compressor drive belt

Checking and tensioning

• Remove the radiator grille (see GROUP 70).

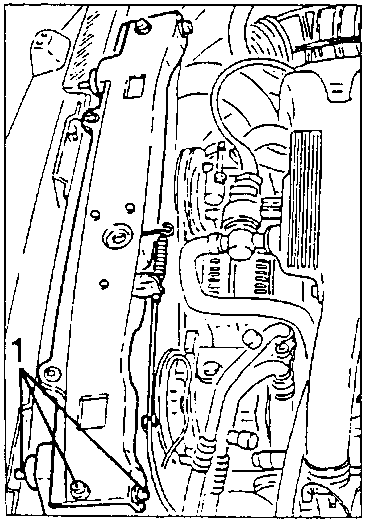

1. Slacken the screws fastening the upper radiator crossmember, then move it to one side without disconnecting the lock control cable.

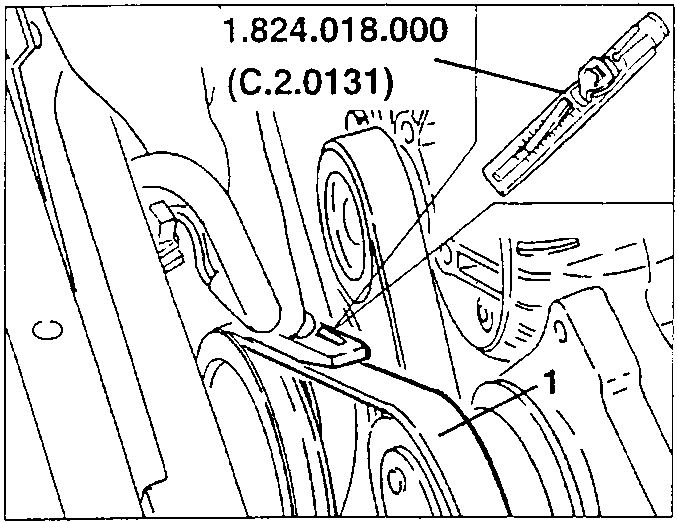

1. Working as illustrated, measure the belt tension using tool N° 1.824.018.000 (C.2.0131).

• Check that the tensioning values measured with the tool are within the specified limits.

NOTE: The belt may be retensioned after a brief running- in period, proceeding as follows:

• bring the engine to the normal operating temperature
• turn the engine off and allow it to cool down
• retension the belt to the specified limit.

• If the belt tensioning is incorrect, proceed as follows:

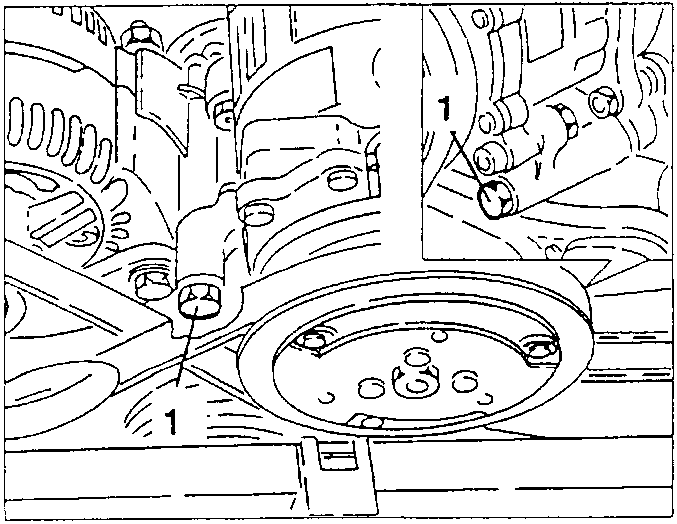

1. Slacken the two bolts fastening the conditioner compressor.
