Maintenance of mechanical groups

MAINTENANCE OF MECHANICAL GROUPS

OIL LEVEL CHECKING AND OIL REPLACEMENT OF THE GEARBOX-DIFFERENTIAL

Oil level checking (Specific for Boxer engines)

• Place the car onto the carlift.

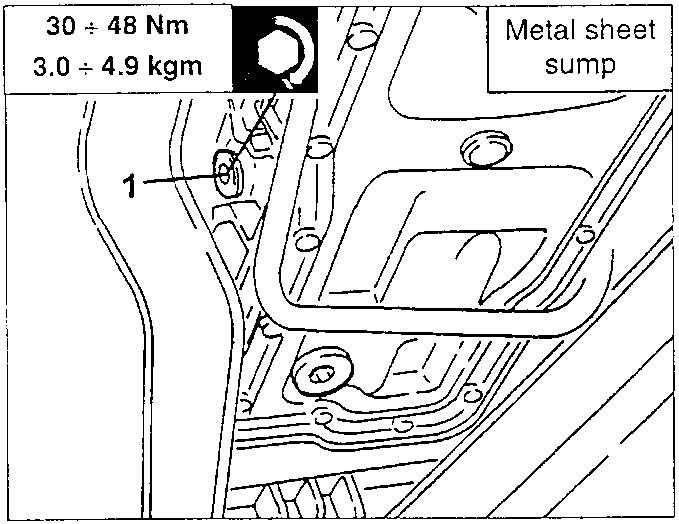

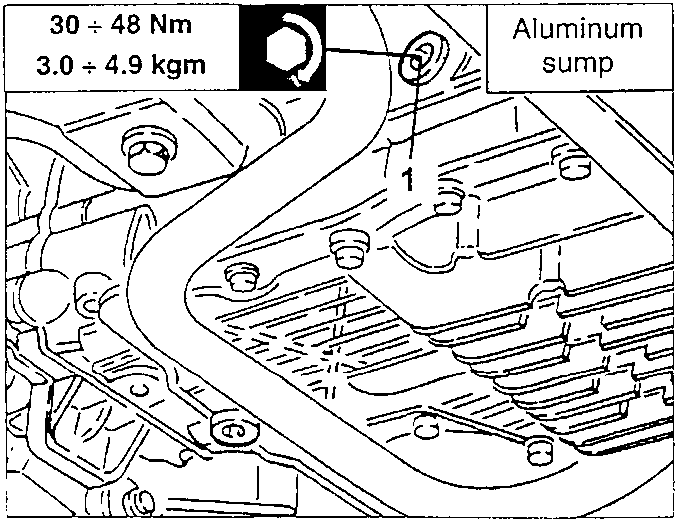

1. Unscrew the supply cap and check that the oil level touches the lower edge of the hole.

• If necessary, refill up to the prescribed level.
• Screw the supply cap tightening it according to the prescribed torque.

Oil replacement (Specific for Boxer engines)

• Place the car onto the carlift.

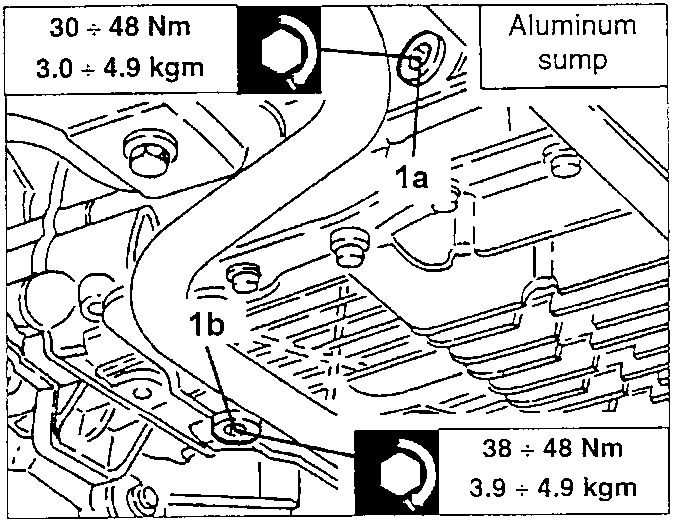

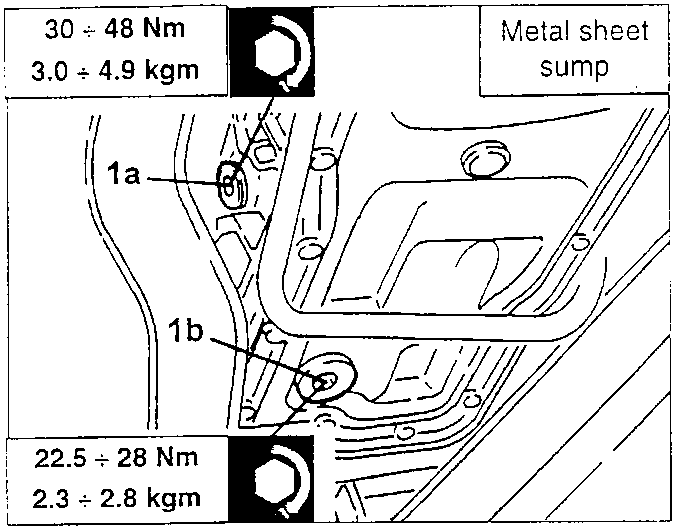

1. Unscrew the supply cap (1a) and the discharge cap (1b), hence let the oil drain out completely.

• Clean the discharge cap and screw it back according to the prescribed torque.
• Introduce oil of the type and in the quantity prescribed through the filling hole.
• Check that the level touches the lower edge of the hole, hence clean the supply cap and screw it back according to the prescribed torque.
