Engine maintenance 1910 JTD

ENGINE MAINTENANCE 1910 JTD

REPLACEMENT OF ENGINE OIL AND FILTER

ATTENTION: The engine oil hurts the skin. Avoid contact as much as possible. Should contact occur, wash thoroughly with soap and water.

• Place the car onto the carlift.

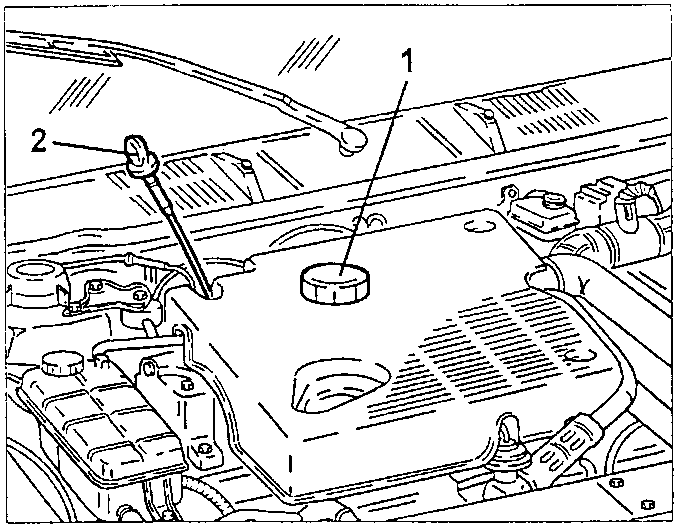

1. At warm engine, remove the refilling cap.
2. Pull out the level indicator of the engine oil.

• Lift the car.

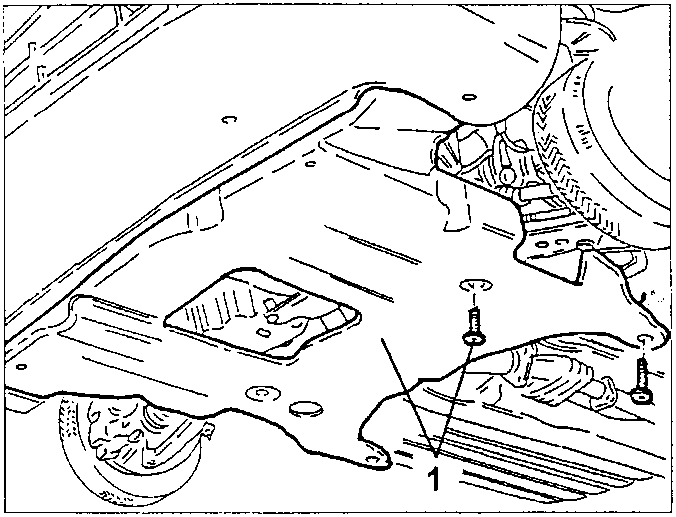

1. Unscrew the clamps and remove the under-engine protection.

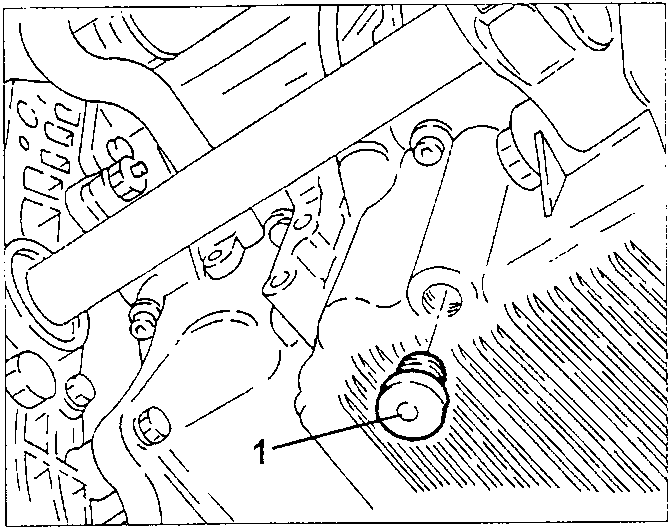

1. Unscrew the discharge cap and let the oil drain out completely into a proper container.

ATTENTION: During the removal of the discharge cap be cautious: the oil could be hot.

ATTENTION: Do not waste the oil into the environment: it causes pollution.

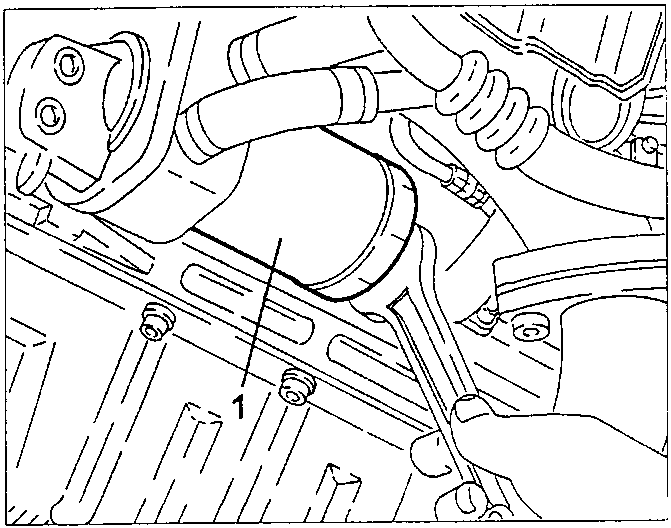

1. Operating from underneath the car and with the appropriate wrench, unblock the oil filter and remove it.

• Clean the discharge cap and screw it with its gasket according to the prescribed torque.
• Damp with the engine oil the gasket of the new filter and screw it by hand.
• Lower the car.
• Supply the engine with oil of the prescribed type and quantity.

ATTENTION: During refilling operations, be careful to avoid accidental oil leaking into the alternator's louvers; this may cause severe damage and fire danger.
