Alfa Romeo 145/146 Factory Service Manual (1994-1999)02 · Technical data and maintenance
02 · Maintenance

Oil replacement

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Maintenance › Oil replacement
Technical data and maintenanceOil replacement · page 1 of 2

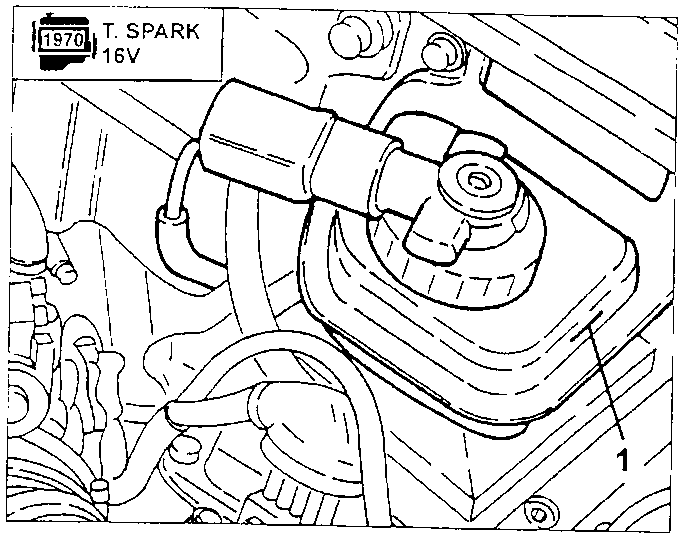

Brakes-clutch fluid tank on the 1970 T. Spark 16V engine with the MAX notch indicated
1970 T. SPARK 16V

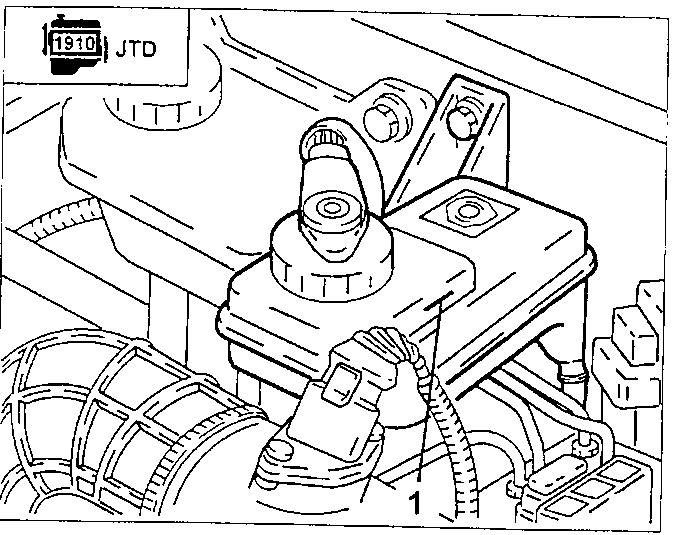

Brakes-clutch fluid tank on the 1910 JTD engine with the MAX notch indicated
1910 JTD

Oil replacement

  • Place the car onto the carlift.
  • Remove the battery (see GROUP 55).
  • Remove the battery basket (see GROUP 55).
  • Suck the brakes-clutch fluid from the tank by means of a syringe.
  1. Remove the protection cap from the drain valve on the cylinder.
  2. Connect the recovery device (pipe and tank) to the drain valve onto the cylinder.
  3. Open the drain valve onto the cylinder.
  • Press the clutch pedal till to empty the cicuit completely.

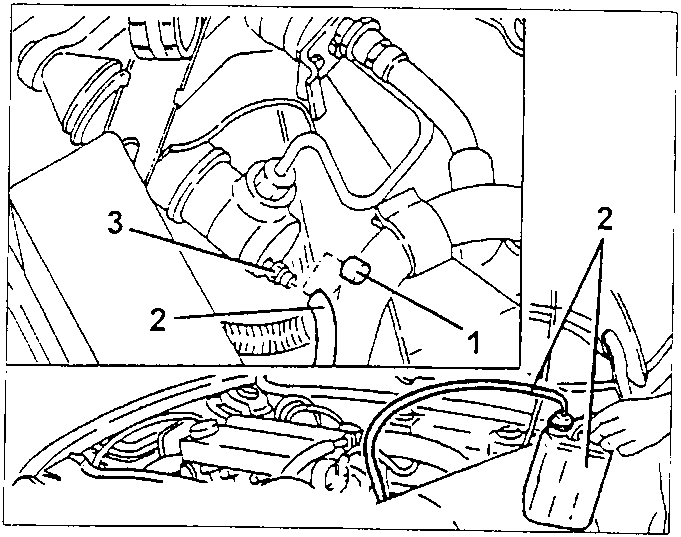

Clutch cylinder drain valve with the recovery pipe and tank
  1. Remove the protection cover from the drain valve on the caliper.
  2. Connect the recovery device (pipe and tank), to the drain valve on the caliper.
  3. Open the drain valve onto the caliper
  • Press the brake pedal till to discharge the whole fluid.
  • Repeat the procedure for the remaining calipers.

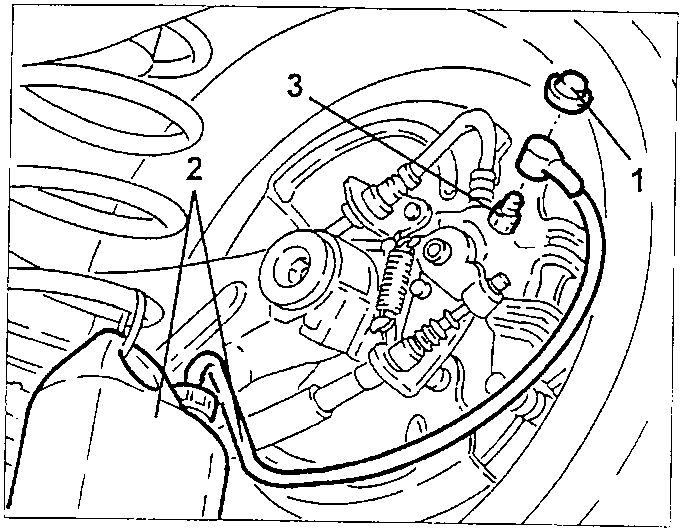

Brake caliper drain valve with the recovery pipe and tank
