Check and adjustment of the valves' play

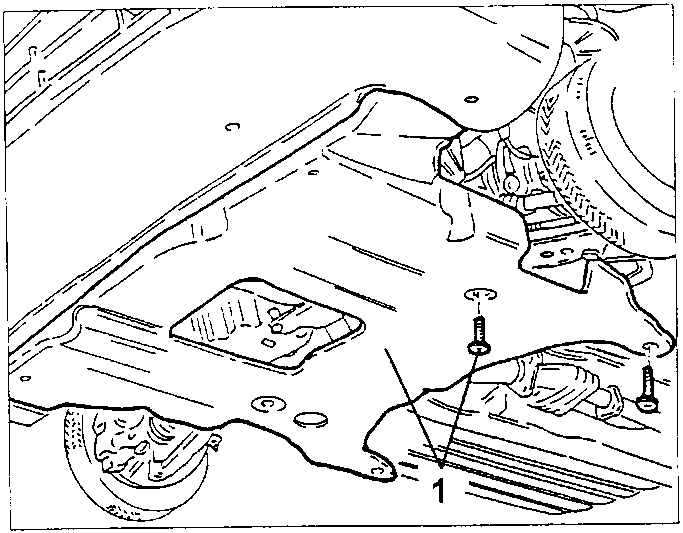

1. Unscrew the clamps and remove the under-engine protection.

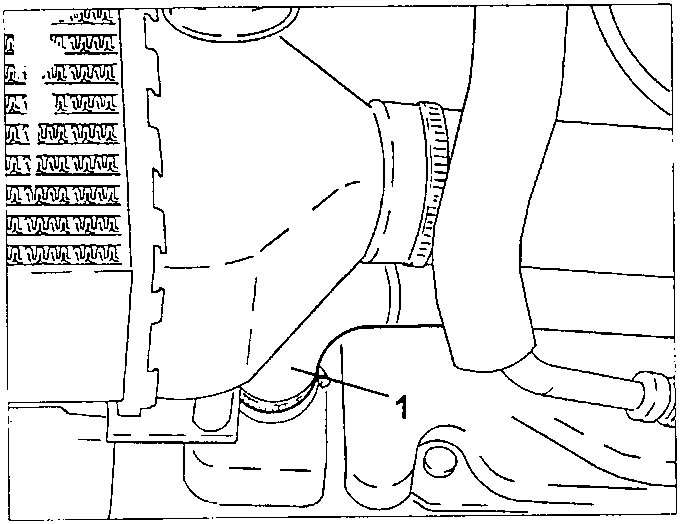

1. Drain the engine cooling fluid by disconnecting the fluid outlet manifold from the radiator.

NOTICE: Collect the engine cooling fluid into a container.

WARNING: the anti-freezing mixture used as engine cooling fluid damages the paint: avoid contact with painted parts.

• Connect the manifold to the radiator back as well as all pipes disconnected; check the tightening of all hose clamps.
• Supply with the fluid prescribed and according to the type and quantity shown up to the MAX notch of the expanding tank.
• Start the engine and bring it to the running temperature so that the thermostat's opening may release the residual air quantity left in the circuit.
• At cold engine, refill up to the MAX notch of the expanding tank.
• Screw the cap of the pressurized expanding tank.

WARNING: Do not mix anti-freezing fluids of different kind or brand.
Do not use anti-rust additives: they may be incompatible with the anti-freeze used.

CHECK AND ADJUSTMENT OF THE VALVES' PLAY

• Place the car onto the carlift.
• Remove the front righthand wheel and the corresponding fender.

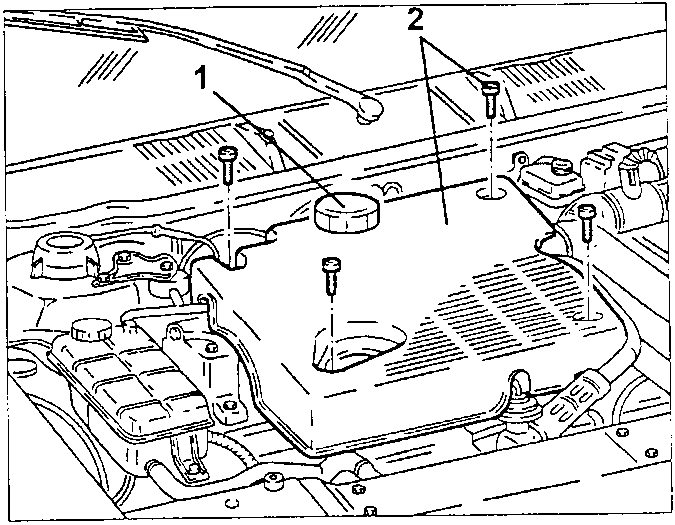

1. Remove the supply cap of the engine oil.
2. Unscrew the clamping screws and remove the engine cover.

• Mount the supply cap of the engine oil back.
