Identification label

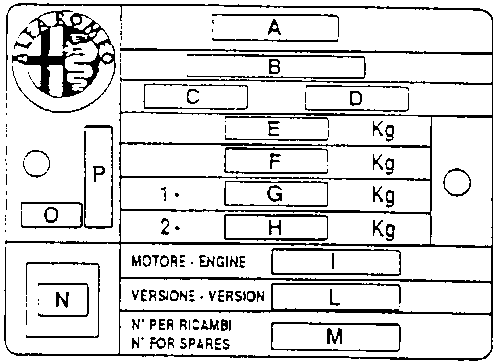

IDENTIFICATION LABEL

This is located on the engine compartment crossmember. It contains the data listed below:

• A. Manufacturer
• B. Homologation number
• C. Vehicle identification code
• D. Chassis serial number
• E. Maximum authorized weight of fully loaded vehicle
• F. Maximum authorized weight of fully loaded vehicle plus trailer
• G. Maximum authorized weight on front axle
• H. maximum authorized weight on rear axle
• I. Engine code
• L. Vehicle version code
• M. Number for spare parts
• N. Correct smoke opacity index (for Diesel engine)
• O. Supplier code
• P. Foreign manufacturer

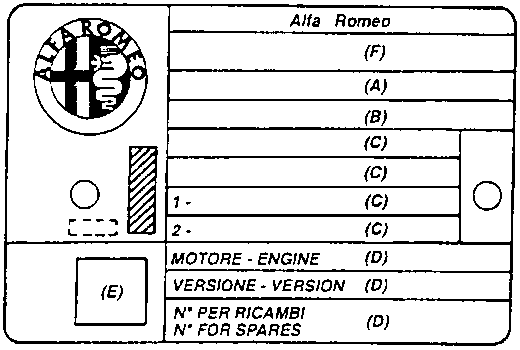

As from the car with chassis no. ______________ the new data plate will be used:

• A. Space for details of national homologation
• B. Space for punching the consecutive chassis number
• C. Space available for maximum weights authorised by various national laws
• D. Space for versions (for example 930A1) and any supplementary indications to those specified
• E. Space for smoke index
• F. Space for punching manufacturer's name

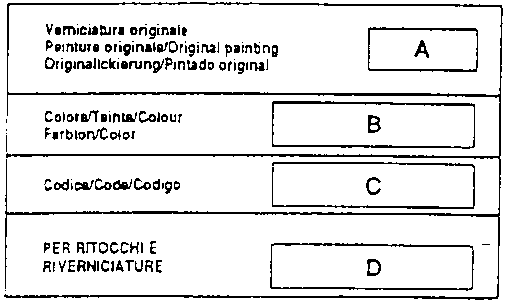

PAINT IDENTIFICATION LABEL

This is located on the inner part of the luggage compartment and carries the data given below:

• A. Paint manufacturer
• B. Colour name
• C. Colour code
• D. Colour code for touch-up and respray
