Summarizing plate of identification data

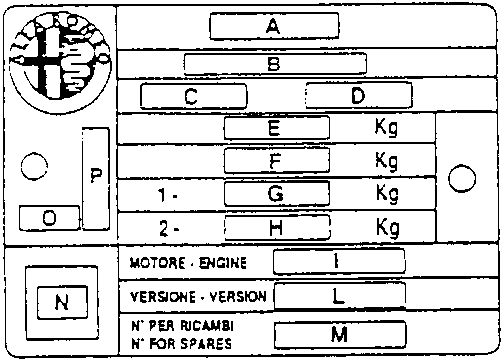

SUMMARIZING PLATE OF IDENTIFICATION DATA

It is applied on the cross member of the engine bay. It includes the ID data as listed hereafter:

• A. Manufacturer's name

• B. Registration number or code
• C. ID code of vehicle type
• D. Number of vehicle manufacture (no. of the chassis)
• E. Maximum authorized weight of the full-load vehicle
• F. Maximum authorized weight at full load plus trailer
• G. Maximum authorized weight on the front axle
• H. Maximum authorized weight on the rear axle
• I. Engine's type
• L. Code of vehicle version
• M. Number of spare parts
• N. Correct value of grade of smoke (for Diesel engine only)
• O. Supplier's code
• P. Foreign producing country

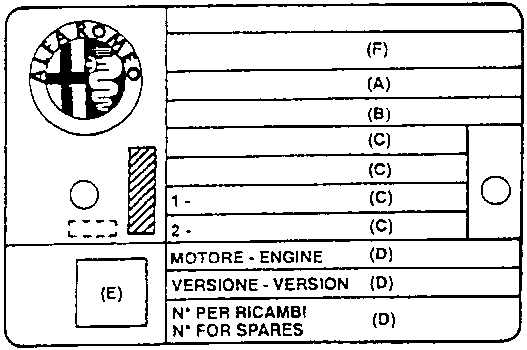

Starting from the vehicle, chassis No. ______________ the new ID plate is applied as follows:

• A. Lines for national registration data
• B. Lines where to punch the chassis number
• C. Lines to indicate the max. weight authorized by different national norms
• D. Lines where to indicate the version (e.g. 930A1) and possible additional data
• E. Lines where to report the grade of smoke
• F. Lines where to punch the manufacturer's name

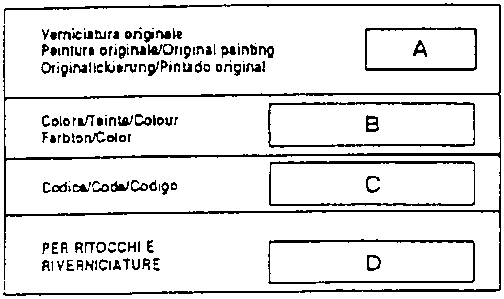

ID PLATE OF BODYWORK PAINT

It is applied in the internal part of the rear bonnet and shows the following data:

• A. Paint's manufacturer
• B. Colour's name
• C. Colour's code
• D. Colour's code for touch-ups or repainting
