Technical data and maintenanceRelevant supply quantities

RELEVANT SUPPLY QUANTITIES

Supply capacities / Versions930 A3930 A2
930 A2A		930 A1930 A4
930 A4A		930 A4B930 A5930 A3A
930 A2B
930 A2C
930 A1A
Fuel tank51 liters51/61 liters (*)
Fuel stock5 ÷ 8 liters
Engine oilTotal capacity: pan + filter + sumps + radiator4.7 liters5.2 liters6 liters(**)5.0 liters
Pan + filter (for recurrent replacement)4 liters4.5 liters5 liters4.2 liters4.4 liters
Oil for gearbox - differential2.4 liters2 liters2 liters
Oil for hydraulic driving system1.1 liters900 gr1.3 liters
Oil for brakes and clutch0.4 kg0.5 kg0.4 kg (▲)0.5 kg
Fluid for engine coooling system7.8 liters8.9 liters6.1 liters8.3 liters8.4 liters
Oil for conditioning compressor240 ± 15 cm³236 ± 15 cm³130 g150 ± 20 cm³
Fluid for conditioning system0.700 kg(**)0.700 kg

(*): For Versions/Markets
(▲): With A.B.S. = 0.54 kg

(**): Data which are not available while printing.

CAR LIFTING POINTS

With bridge or workshop autolift.

  • The car is to be lifted by placing the arms' ends or the autolift as shown.

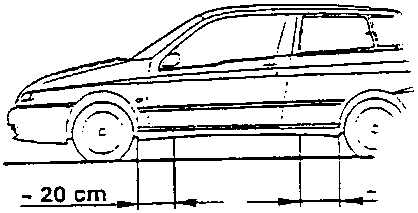

Side view of the car showing the lifting points, about 20 cm from the wheels

CAR TOWING POINTS

The car is equipped with two rings, a front and a rear one, located on the right side of the bumper.

The rear ring is covered by a door that can be opened by pressing on its edge.

Please comply with the existing norms in matter of tow operations.

Before the towing operation, the key must be turned onto MAR position and hence is to be turned back onto STOP position without removing it; in this way the steering block will be avoided.

It is important to know that, in case of towing, there is no depression in the servo brake, it is therefore necessary to press the brake pedal with increased strength.

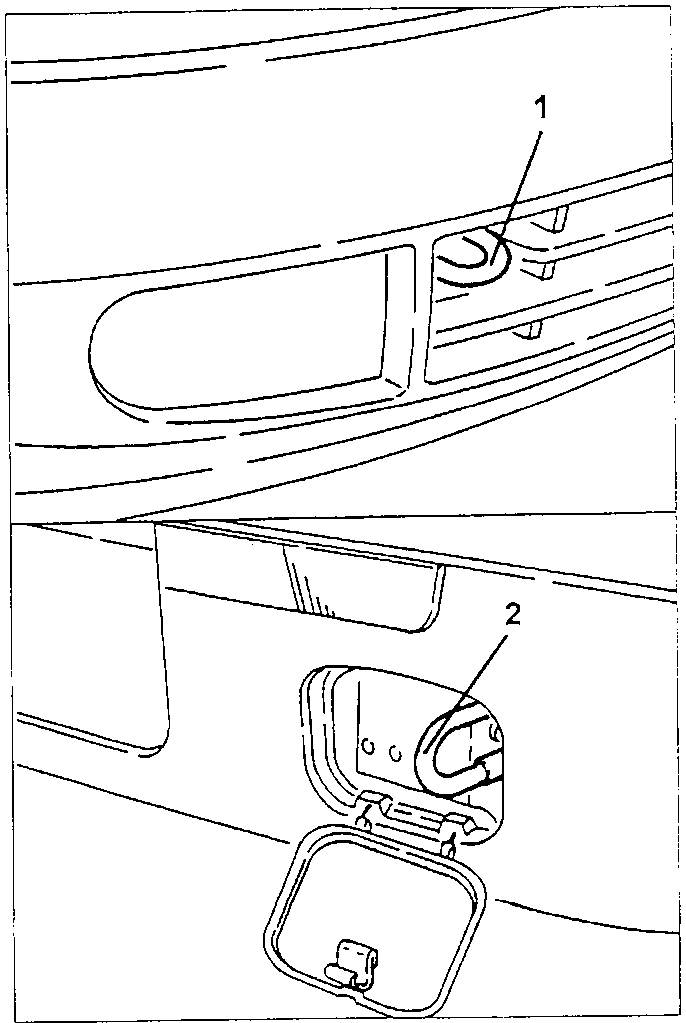

Front and rear towing rings on the bumpers, marked 1 and 2
  1. Front hitch
  2. Rear hitch
