POSITIONING OF IDENTIFICATION PLATES

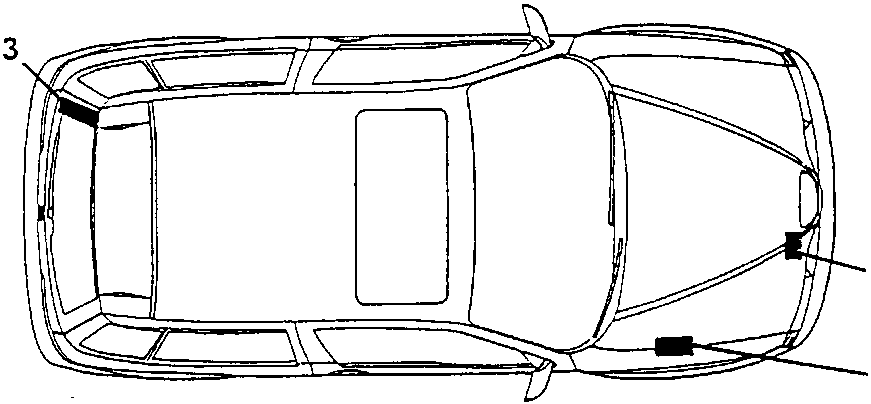

Plan view of the car showing the positions of plates 1, 2 and 3

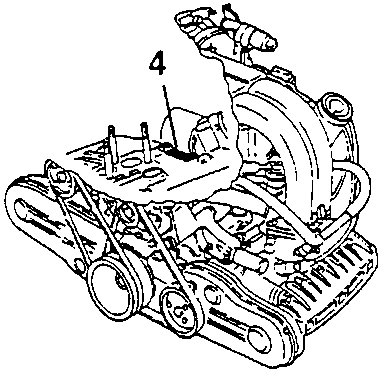

Boxer engine with the engine marking position 4 arrowed
Boxer engines

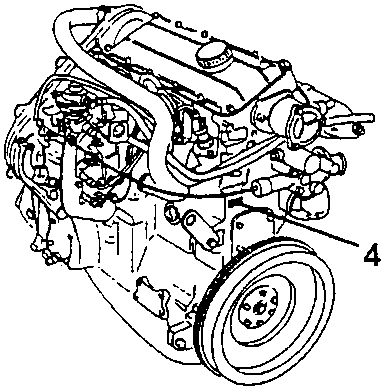

1929 TD engine with the engine marking position 4 arrowed
1929 TD engine

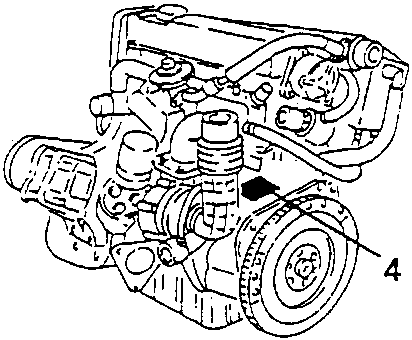

1910 JTD engine with the engine marking position 4 arrowed
1910 JTD engine

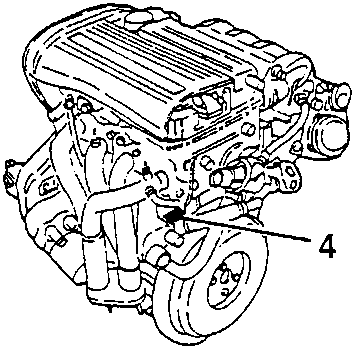

T. Spark 16V engine with the engine marking position 4 arrowed
T. Spark 16V engines
  1. Plate of summarized identification data
  2. Body marking
  3. ID plate of body paint
  4. Engine marking

DIMENSIONS

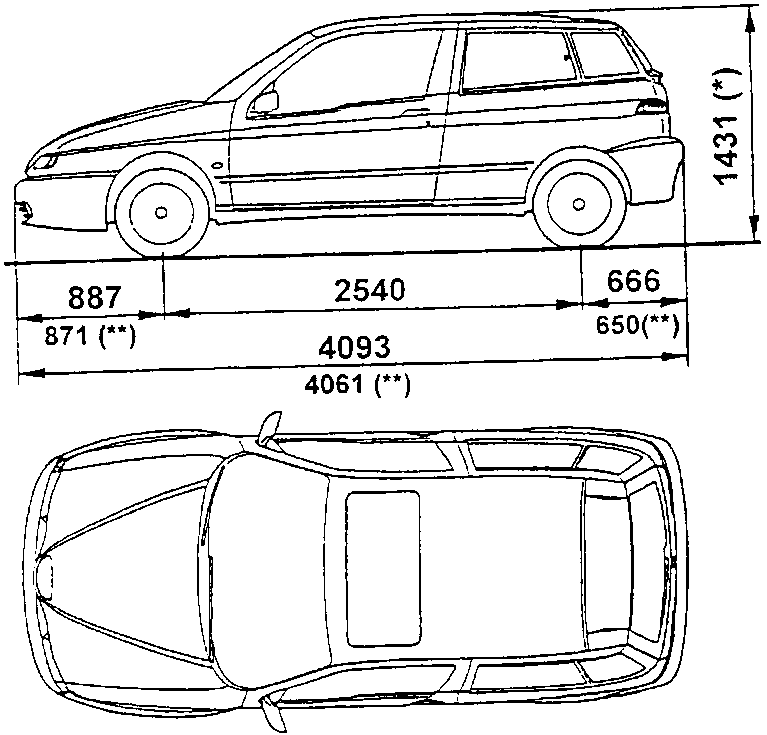

Side and plan views with dimensions: front overhang 887 (871**), wheelbase 2540, rear overhang 666 (650**), length 4093 (4061**), height 1431*

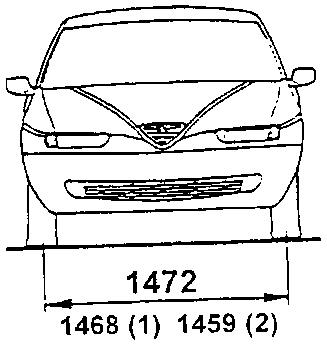

Front view: front track 1472, 1468 (1), 1459 (2)

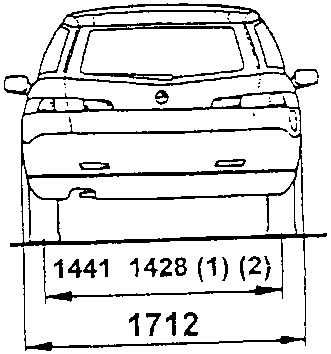

Rear view: rear track 1441, 1428 (1) (2); width 1712

(*): With exhausted car (**): For 99s versions
(1): For 1.8 T. Spark version and [symbol] (2): For sporting version
