Approximate servicing capacities
- Make
- Alfa Romeo
- Model
- 145/146 Factory Service Manual
- Year
- 1994–1999
- Section
- Vehicle › Approximate servicing capacities
APPROXIMATE SERVICING CAPACITIES
| Capacity / Version | 930 A3 | 930 A2 930 A2A | 930 A1 | 930 A4 930 A4A | 930 A4B | 930 A5 | 930 A3A 930 A2B 930 A2C 930 A1A | |
|---|---|---|---|---|---|---|---|---|
| Fuel tank | 51 litres | 51/61 litres (*) | ||||||
| Fuel reserve | 5 ÷ 8 litres | |||||||
| Engine oil | Total capacity: sump + filter + wells + radiator | 4.7 litres | 5.2 litres | 6 litres | (**) | 5.0 litres | ||
| Sump + filter (for periodical replacement) | 4 litres | 4.5 litres | 5 litres | 4.2 litres | 4.4 litres | |||
| Gearbox - differential oil | 2.4 litres | 2 litres | 2 litres | |||||
| Power steering system oil | 1.1 litres | (**) | 1.3 litres | |||||
| Brake and clutch circuit oil | 0.4 kg | 0.5 kg | (**) | 0.5 kg | ||||
| Engine cooling system fluid | 7.8 litres | 8.9 litres | (**) | 8.3 litres | 8.4 litres | |||
| Conditioner compressor oil | 240 ± 15 cm³ | 236 ± 15 cm³ | 130 g | 150 ± 20 cm³ | ||||
| Air conditioner system fluid | 0.700 kg | (**) | 0.700 kg | |||||
(*): For Versions/Markets (**): Not available at time of going to press.

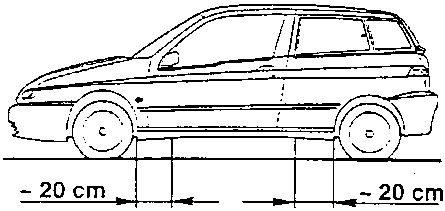

CAR LIFTING POINTS
Using an arm lift or workshop jack.
- The car should be raised setting the ends of the arms or the jack in the areas illustrated.

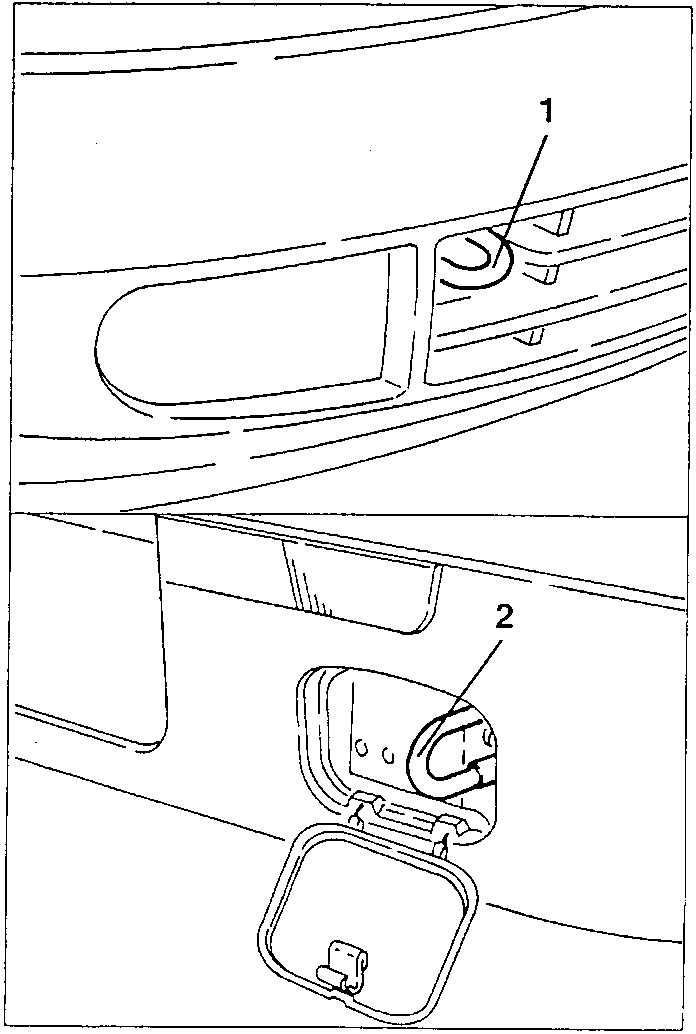

CAR TOW POINTS
The car has two rings, one at the front and one at the rear, on the right-hand side of the bumpers.
The rear ring is covered by a lid that is opened by pushing on the edge.
Always strictly adhere to local regulations on the subject of towing.
Before towing, the ignition switch of the towed car should be turned to MAR and then to STOP without removing it; this will prevent the steering from locking.
Remember that when the car is towed, the vacuum is not created in the servobrake system, therefore, considerably greater pressure on the brake pedal is required.
- Front tow hook
- Rear tow hook
