Technical data and maintenanceLocation of identification labels

LOCATION OF IDENTIFICATION LABELS

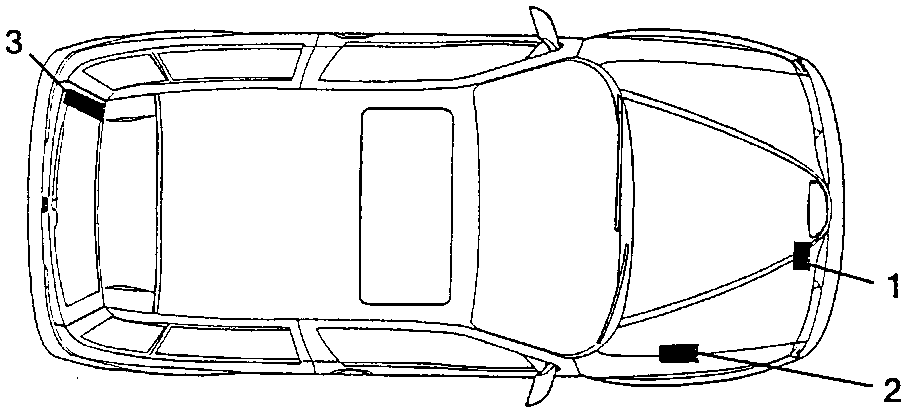

Plan view of the car showing the positions of labels 1, 2 and 3

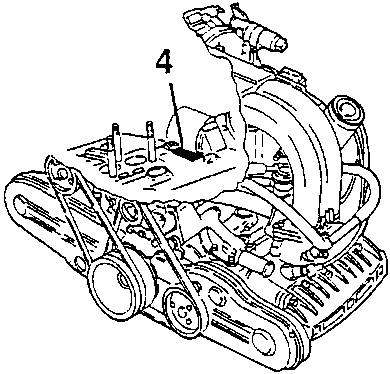

Boxer engine with the engine code position 4 arrowed
Boxer engines

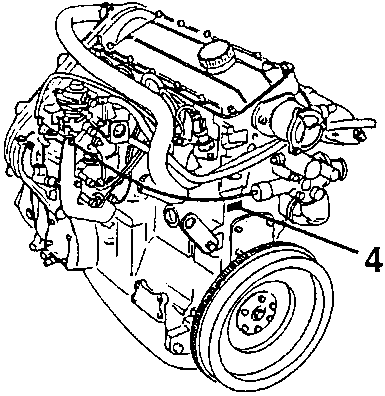

1929 TD engine with the engine code position 4 arrowed
1929 TD engine

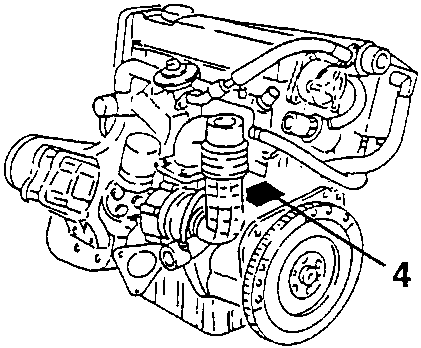

1910 JTD engine with the engine code position 4 arrowed
1910 JTD engine

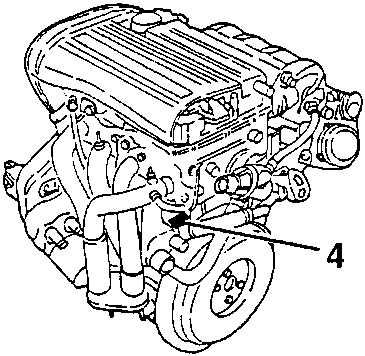

T. Spark 16V engine with the engine code position 4 arrowed
T. Spark 16V engines
  1. Data plate
  2. Body code
  3. Paint identification label
  4. Engine code

DIMENSIONS

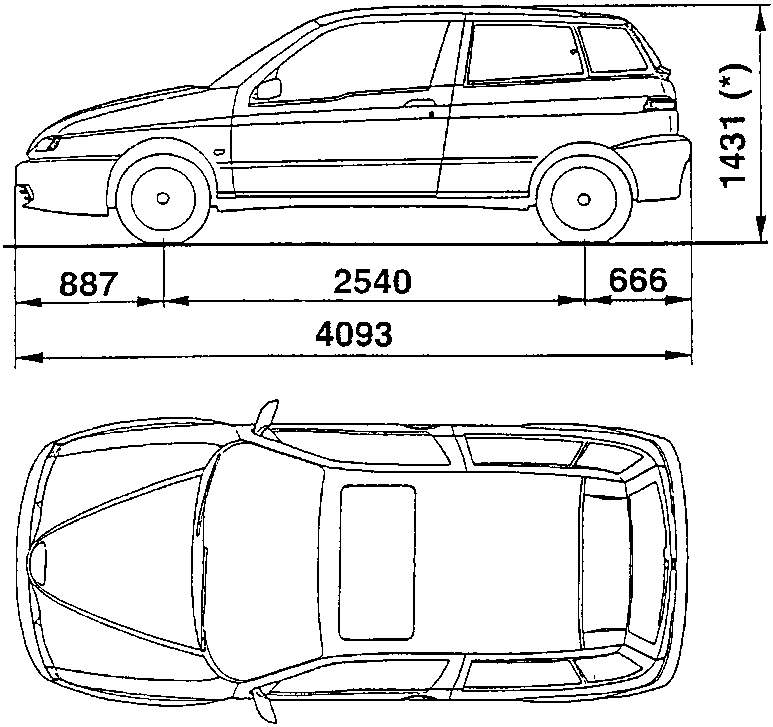

Side and plan views with dimensions: front overhang 887, wheelbase 2540, rear overhang 666, length 4093, height 1431 (*)

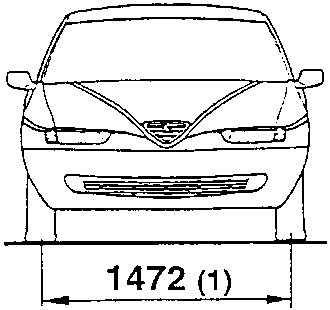

Front view: front track 1472 (1)

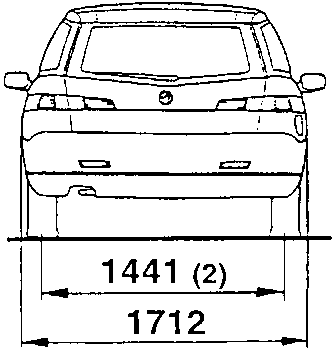

Rear view: rear track 1441 (2); width 1712

(*): Empty vehicle (1): 1480 for Turbodiesel versions (2): 1428 for T. Spark 16V versions
