Engine - position on stand and remove

Operation 1004D40 · Remove engine and wash

1.6 TS

Secure and support the engine for hoisting using a hydraulic hoist fitted with suitable chains.

Fit the engine on the overhauling stand using suitable tools.

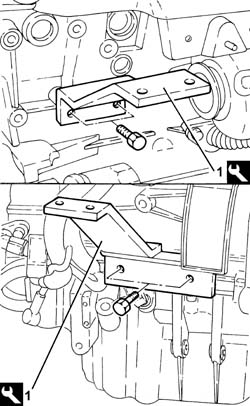

1. It is possible to use the tool to support the engine on the overhauling stand.

Release the engine from the hoist.

Secure and support the engine using a hydraulic hoist fitted with suitable chains.

Undo the fixings and remove the engine complete with supporting tools.

Undo the fixings and remove the supporting tools from the engine, then put them down.

2.0 TS

Secure and support the engine for hoisting using a hydraulic hoist fitted with suitable chains.

Fit the engine on the overhauling stand using suitable tools.

1. It is possible to use the tool to support the engine on the overhauling stand.

Release the engine from the hoist.

Secure and support the engine for hoisting using a hydraulic hoist fitted with suitable chains.

Undo the fixings and remove the engine complete with supporting tools.

Undo the fixings and remove the supporting tools from the engine, then put them down.

Secure and support the engine using a hydraulic hoist fitted with suitable chains.

Position the engine on the overhauling stand using suitable tools.

1. It is possible to use the tool to support the engine on the overhauling stand.

Release the engine from the fastenings.

Secure and support the engine using a hydraulic hoist fitted with suitable chains.

Undo the fastenings and remove the engine complete with supporting tools from the service stand.

Undo the fastenings, remove the supporting tools from the engine, then put them down.

3.2 V6

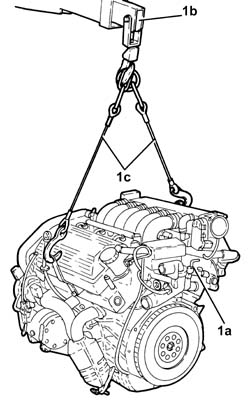

1. Secure and support the engine (1a) using a hydraulic hoist (1b) fitted with suitable chains (1c).

1. Release and rmove the engine oil dipstick.

2. Undo the bolt (2a) and the connector (2b), then remove the engine oil dipstick pipe (2c).

1. Undo the nuts (1a) and remove the left exhaust manifold with the catalytic preconverter (1b) incorporated.

2. Remove gaskets.

1. Use a spanner on the moving tensioner and remove the single drive belt to loosen the belt tension.

2. Remove the engine components single drive belt.

1. Undo the bolt (1a) and remove the fixed single drive belt tensioner (1b).

1. Undo the nut (1a) fixing the electrical wiring mounting bracket (1b).

2. Disconnect the electrical connection for the insufficient engine oil pressure sensor.

1. Undo the bolts (1a) and remove the alternator (1b) complete with electrical wiring (1c).

1. Undo the bolts (1a) and remove the alternator mounting (1b).

1. Remove the engine oil filter using a suitable tool.

2. Undo the bolts (2a) and the nuts (2b) and remove the engine oil filter/intermediate driveshaft mounting (2c).

3. Remove the gasket.

1. Disconnect the electrical connection for the air conditioning compressor electromagnet coupling.

1. Undo the bolts (1a) and remove the air conditioning compressor (1b).

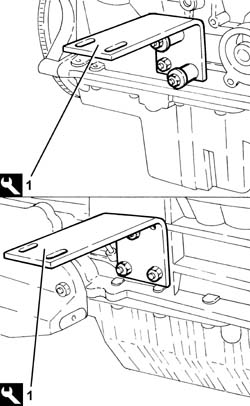

1. Fit the brackets for supporting the engine on the service stand.

Position the engine on the overhauling stand using the special brackets, then release it from the hydraulic lift.

Secure and support the engine using a hydraulic hoist fitted with suitable chains.

Undo the fastenings and remove the engine complete with mounting brackets from the service stand.

Undo the fixings and remove the mounting brackets from the engine and put them down.

1. Place the air conditioning compressor (1a) back in its housing and secure it tightening the bolts (1b) to the recommended torque.

Connect the electrical connection to the air conditioning compressor electromagnet coupling.

1. Place the engine oil filter/intermediate driveshaft mounting (1a), complete with gasket (1b) back in its housing and secure it tightening the bolts (1c) and the nuts (1d) to the recommended torque.

2. Fit the engine oil filter and tighten it fully by hand.

1. Place the alternator mounting (1a) back in its housing and secure it tightening the bolts (1b) to the recommended torque.

1. Place the alternator (1a), complete with electrical wiring (1b), back in its housing and secure it tightening the bolts (1c) to the recommended torque.

Connect the electrical connection to the engine oil pressure warning sensor.

Tighten the nut securing the electrical wiring mounting bracket.

1. Place the engine components single drive belt fixed tensioner (1a) back in its housing and fix it tightening the bolts (1b) to the recommended torque.

Place the single engine components belt back in its housing keeping the moving tensioner in a slack belt position using a suitable spanner.

1. Place the left exhaust manifold with the catalytic preconverter (1a) incorporated complete with gaskets (1b) back in its housing and secure it tightiening the nuts (1c) to the recommended torque.

Place the complete engine oil dipstick tube back in its housing and fix it using the connector and the bolt.

Place the engine oil dipstick back in its seating.

Release the engine from the hydraulic lift.

1.9 JTD 8V

Secure and support the engine using a hydraulic hoist fitted with suitable chains.

Position the engine on the overhauling stand using suitable tools.

1. It is possible to use the tool to support the engine on the overhauling stand.

Release the engine from the fastenings.

Secure and support the engine using a hydraulic hoist fitted with suitable chains.

Undo the fixings and remove the engine complete with supporting tools.

Undo the fixings and remove the supporting tools from the engine, then place them down.

1.9 JTD 16V

Secure and support the engine using a hydraulic hoist fitted with suitable chains.

1. Use a spanner, in an anti-clockwise direction, on the moving tensioner to loosen the tension of the engine components single drive belt.

2. Remove the single drive belt.

1. Disconnect the electrical connection for the air conditioning compressor.

2. Undo the bolts (2a) and remove the air conditioning compressor (2b).

1. Undo the bolts (1a) and remove the air conditioning compresor mounting (1b).

1. Disconnect the electrical connections from the alternator.

1. Undo the bolts (1a) and remove the alternator (1b).

1. Undo the bolt securing the intermediate drive shaft mounting to the crankcase oil sump.

2. Undo the bolts (2a) and remove the intermediate drive shaft mounting (2b) complete with upper alternator bracket (2c).

1. Disconnect the electrical connection for the engine oil level sensor.

1. Fit the brackets for positioning the engine on the overhauling stand.

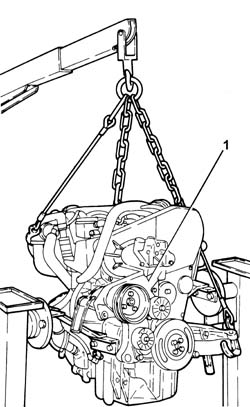

1. Position the engine on the overhauling stand using the hydraulic lift.

Fasten the mounting brackets to the overhaul stand.

Release the engine from the hydraulic lift fastenings.

Secure and support the engine using a hydraulic hoist fitted with suitable chains.

Undo the fixings and remove the engine complete with mounting brackets.

Remove the brackets for positioning the engine on the overhauling stand.

Connect the electrical connection to the engine oil level sensor.

1. Refit intermediate drive shaft (1a) complete with upper alternator mount bracket (1b) and secure it by tightening bolts (1c) to the specified torque.

2. Tighten the bolt securing the intermediate drive shaft mounting to the oil sump to the recommended torque.

1. Place the alternator (1a) back in its housing and fix it tightening the bolts (1b) to the recommended torque.

Connect the electrical connection to the alternator.

1. Place the air conditioning compressor mounting (1a) back in its housing and fix it tightening the bolts (1b) to the recommended torque.

1. Place the air conditioning compressor (1a) back in its housing and secure it tightening the bolts (1b) to the recommended torque.

2. Connect the electrical connection to the air conditioner compressor.

Fit the single engine component belt by adjusting the moving tensioner using a wrench.

Release the engine from the hydraulic lift fastenings.
