Introduction - ENGINE COOLING

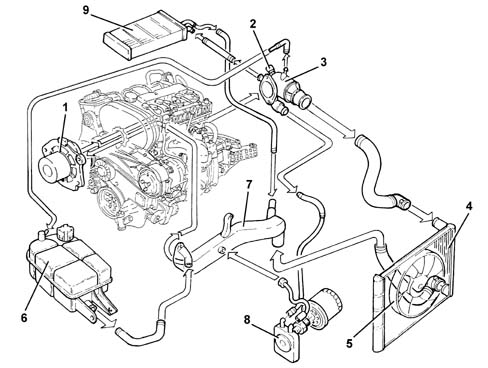

1.6 TS

CONSTRUCTION FEATURES

ENGINE COOLING SYSTEM

1 - Water pump

2 - Engine coolant temperature sensor

3 - Thermostat

4 - Radiator

5 - Electric fan

6 - Reservoir

7 - Water pump rigid inlet pipe

8 - Water/oil heat exchanger

9 - Heater unit

2.0 TS

CONSTRUCTION FEATURES

ENGINE COOLING SYSTEM

1 - Water pump

2 - Engine coolant temperature sensor

3 - Thermostat

4 - Radiator

5 - Electric fan

6 - Reservoir

7 - Water pump rigid inlet pipe

8 - Water/oil heat exchanger

9 - Heater unit

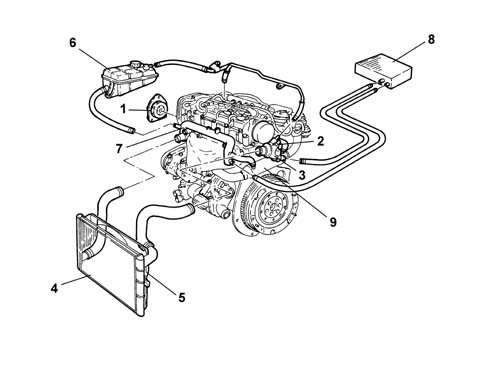

1.9 JTD 8V

CONSTRUCTION FEATURES

ENGINE COOLING SYSTEM

1 - Water pump

2 - Engine coolant temperature sensor Characteristic of working principle 1060G pressure pump electric control

3 - Thermostat

4 - Radiator

5 - Electric fan

6 - Reservoir

7 - Rigid coolant pump intake pipe

8 - Engine oil heat exchanger

9 - Climate control system heater

10 - E.G.R. exhaust gas heat exchanger Characteristic of working principle 1080C exhaust gas recirculation system (e.g.r.)

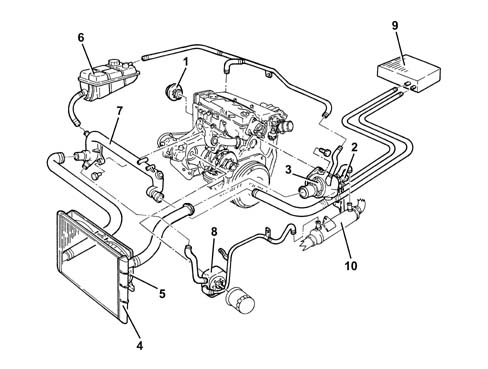

1.9 JTD 16V

CONSTRUCTION FEATURES

COOLING SYSTEM

1 - Water pump

2 - Engine coolant temperature sensor Characteristic of working principle 1060G pressure pump electric control

3 - Thermostat

4 - Radiator

5 - Electric fan

6 - Reservoir

7 - Rigid coolant pump intake pipe

8 - Engine oil heat exchanger

9 - Climate control system heater

10 - E.G.R. exhaust gas heat exchanger Characteristic of working principle 1080C exhaust gas recirculation system (e.g.r.)
