Hydraulic clutch system bleed air

Operation 0010T67 · Vehicle oil and fluids

1.6 TS, 2.0 TS

Refer to op. 1820B08 Clutch release HYDRAULIC SYSTEM - Bleeding air and restoring level

1.9 JTD 8V

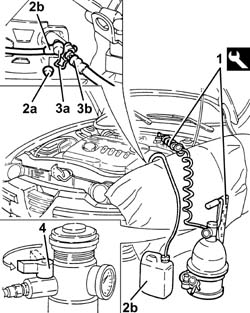

1. Connect the tool to the brake-clutch fluid reservoir.

2. Remove protective cap (2a) and connect recovery device (2b) to the hydraulic clutch control actuator.

3. Lift the retaining clip (3a) until the first click is heard and remove the pipe (3b) sufficiently to uncover the bleed hole.

4. Slowly open the fluid reservoir cock.

Wait until all the air contained in the hydraulic clutch disengagement system has come out.

Fit the pipe fully home in its seat on the hydraulic clutch control actuator and secure with the retaining clip.

Remove the protective cap.

Remove the collection system.

Remove the bleed equipment.

Check correct clutch disengagement and gear engagement.

Check the fluid level in the brake - clutch reservoir is correct.

1.9 JTD 16V

Proceed with removal Refer to op. 1016A10 sound-proofing cover - r + r.

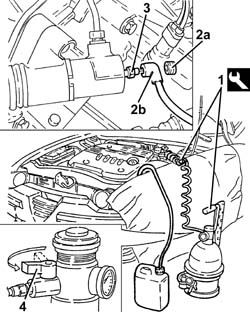

1. Connect the tool to the brake-clutch fluid reservoir.

Proceed with removal Refer to op. 5530B10 battery - r+r.

Proceed with removal Refer to op. 5530B52 Battery DRIP TRAY/SUPPORT - R.R..

2. Remove the protective cap (2a) and connect the recovery devices (2b) to the bleed valve on the clutch operating cylinder.

3. Open the bleed valve on the clutch master cylinder.

4. Slowly open the fluid reservoir cock.

Wait until all the air contained in the hydraulic clutch disengagement system has come out.

Close the bleed valve on the clutch operating cylinder and fit the protective cap.

Remove the collection system.

Remove the bleed equipment.

Proceed with refitting Refer to op. 5530B52 Battery DRIP TRAY/SUPPORT - R.R..

Proceed with refitting Refer to op. 5530B10 battery - r+r.

Check correct clutch disengagement and gear engagement.

Check the fluid level in the brake - clutch reservoir is correct.

Proceed with refitting Refer to op. 1016A10 sound-proofing cover - r + r.

3.2 V6

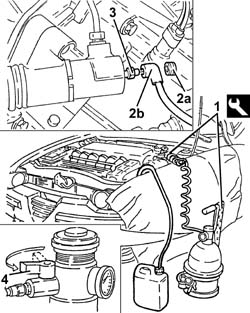

1. Connect the tool to the brake-clutch fluid reservoir.

Proceed with removal Refer to op. 5530B10 battery - r+r.

Proceed with removal Refer to op. 5530B52 Battery DRIP TRAY/SUPPORT - R.R..

2. Remove the protective cap (2a) and connect the recovery device (2b) to the bleed valve on the clutch operating cylinder.

3. Open the bleed valve on the clutch master cylinder.

4. Slowly open the fluid reservoir cock.

Wait until all the air contained in the hydraulic clutch disengagement system has come out.

Close the bleed valve on the clutch operating cylinder and fit the protective cap.

Remove the collection system.

Remove the bleed equipment.

Proceed with refitting Refer to op. 5530B52 Battery DRIP TRAY/SUPPORT - R.R..

Proceed with refitting Refer to op. 5530B10 battery - r+r.

Check correct clutch disengagement and gear engagement.

Check the fluid level in the brake - clutch reservoir is correct.
