Internal tailgate moulding (one) - r+r

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Tailgate/flap › Internal tailgate moulding (one) - r+r

BodyInternal tailgate moulding (one) - r+r

Internal tailgate moulding (one) - r+r

Operation 7015A58 · Tailgate assembly

Removal

See Op. 7015A04 Tailgate interior panel - r+r

See Op. 5550D16 Third stop light - r+r

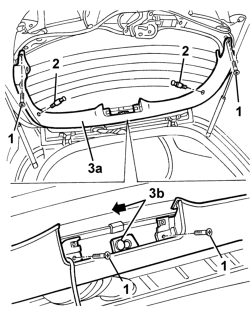

1 Unscrew the bolts.

2 Undo the parcel shelf attachments.

3 Remove the moulding 3a after releasing it from the retainer 3b.

Refitting

Check that the moulding is undamaged.

Position the moulding and engage it on the retainer.

Tighten the parcel shelf attachments.

Tighten the screws.

See Op. 5550D16 Third stop light - r+r .

See Op. 7015A04 Tailgate interior panel - r+r .
