Tailgate interior panel - r+r

Operation 7015A04 · Tailgate assembly

Removal

Open the tailgate.

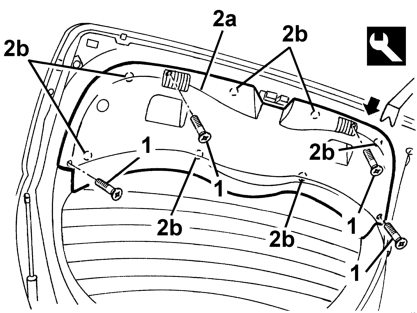

1 Unscrew the panel retaining bolts.

2 Remove the panel 2a after removing it from the internal retainers 2b using the appropriate tool.

Special tool 1.823.015.000 – Blade 2

Refitting

Check that the panel is undamaged and that the retainers are undamaged and correctly positioned.

Fit the panel.

Fit the panel, engaging the retainers.

Tighten the panel fixing bolts.
