Lock block-r r

Operation 7015B36 · Tailgate locking/opening devices

Removal

NOTE: It is not possible to order a single lock barrel or to order barrels simply by using a part code. When ordering barrels, observe the special procedure set out in 5580E - Special accessories.

See Op. 7015A04 Tailgate interior panel - r+r

See Op. 7015B10 Single tailgate lock - r+r or repair with panel/protection removed

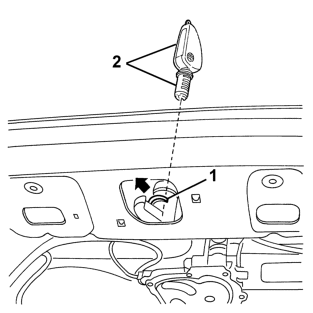

1 Remove the retaining clip.

2 Insert the key in the lock barrel and remove.

Refitting

NOTE: It is not possible to order a single lock barrel or to order barrels simply by using a part code. When ordering barrels, observe the special procedure set out in 5580E - Special accessories.

Check that the lock barrel is undamaged.

Fit the retaining spring into its seat.

Fit the lock barrel into its seat until the groove engages with the retaining clips.

See Op. 7015B10 Single tailgate lock - r+r or repair with panel/protection removed

See Op. 7015A04 Tailgate interior panel - r+r
