Tail gate compartment strip - r+r

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Tailgate/flap › Tail gate compartment strip - r+r

BodyTail gate compartment strip - r+r

Tail gate compartment strip - r+r

Operation 7015A32 · Tailgate assembly

Removal

See Op. 7040B22 Luggage compartment/load platform moulding - r+r

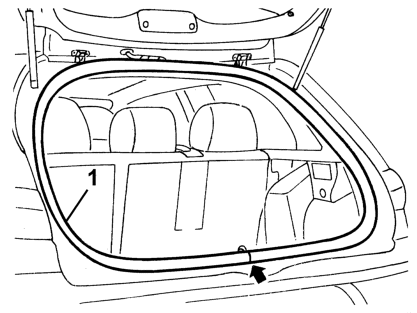

1 Prise up the seal from its seat.

Refitting

Check that the seal is intact and undamaged.

Fit the seal in its seat. The join mark should be at the centre of the bottom side.

13 Body & interior
