Front brake calipers - r r

Operation 3310A30 · Front disc brakes

Removal

Position the vehicle on the ramp.

Ensure that the ignition key is in the stop OFF, then disconnect the battery negative terminal.

Component A1B Battery

Proceed with the removal See Op. 4450B10 Front or rear wheel (one) - r+r .

Proceed with the removal See Op. 3330E10 L/h or r/h hose (one) to front brake calipers - r+r .

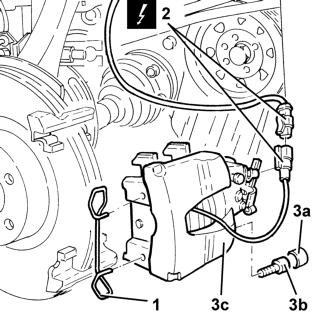

1 Remove the clip securing the caliper to the bracket.

2 Disconnect the electrical connections for the brake pad wear cable.

Component K20 Left brake pad wear sensor (switch) 2

Component K21 Data not yet available 2

3 Remove the protective plugs 3a, undo the bolts 3b, then remove the front brake caliper 3c with the pads.

Refitting

NOTE: When fitting a new brake caliper, the latter is supplied to Parts with no brake fluid; it is therefore necessary to operate as follows:

NOTE: - slacken the bleed screw;

NOTE: - insert the end of a transparent tube in the hole on the bleed screw;

NOTE: - using a normal container with recommended brake fluid, insert brake fluid into the caliper until air bubbles emerge from the threaded hole where the hose is connected;

NOTE: - tighten the bleed screw.

Refit the front brake caliper complete with pads in its seating, tighten the bolts to the specified torque and fit the protective plugs.

Screw M12 – Front brake caliper assembly: (Bracket side) 11.7 daNm

Connect the electrical connection for the brake pad wear cable.

Refit in its seating the clip securing the brake caliper to the bracket.

Proceed with the refitting See Op. 3330E10 L/h or r/h hose (one) to front brake calipers - r+r .

Bleed the air from the braking system See Op. 3330A14 Hydraulic brake system - bleed .

Proceed with the refitting See Op. 4450B10 Front or rear wheel (one) - r+r .

Connect the battery terminal (-).
