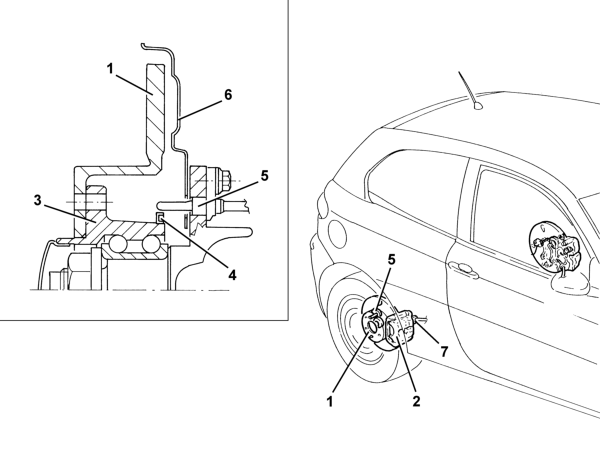

Rear disc brakes – construction features

• 1 Brake disc
• 2 Brake caliper
• 3 Hub outer race
• 4 Multipolar magnetic ring
• 5 ABS active sensor
• 6 Guard
• 7 Handbrake link anchorage

On all versions, the rear wheels are fitted with a brake system with solid discs and LUCAS floating aluminium calipers with automatic play take-up.

The brake caliper mechanism is operated mechanically by means of the handbrake lever [ 3340 ( Characteristic of working principle 3340 Anti-lock brake system

(abs))].

The hub outer race is fitted with a multipolar magnetic ring that indicates wheel movements to the active ABS sensor [ 3340 ( Characteristic of working principle 3340 Anti-lock brake

system (abs))] secured to the suspension arm.
