Rear brake calliper - r r

Operation 3310B36 · Rear disc brakes

Removal

Position the vehicle on the ramp.

Remove the handbrake boot.

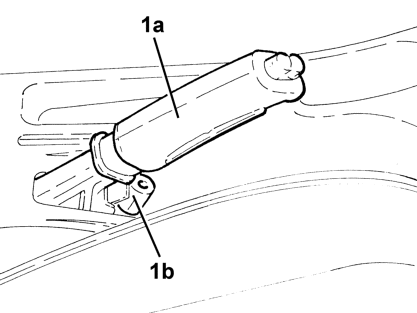

1 Lift up the handbrake lever 1a and loosen the nut 1b tensioning the handbrake cables.

Proceed with the removal See Op. 4450B11 Rear wheel (one) - r r .

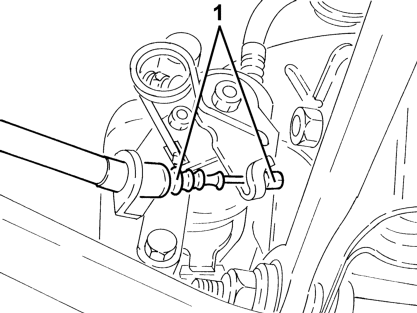

1 Disconnect the handbrake cable from the rear brake caliper.

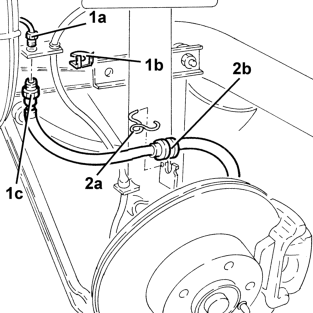

1 Undo the connector 1a, remove the stop 1b and disconnect the rear brake flexible pipe 1c from the rigid pipe.

2 Remove the stop 2a and release the flexible pipe 2b from the mounting bracket.

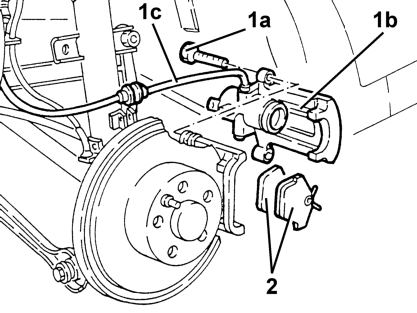

1 Undo the bolts 1a and remove the rear brake caliper 1b complete with flexible pipe 1c.

2 Remove the rear brake pads.

Refitting

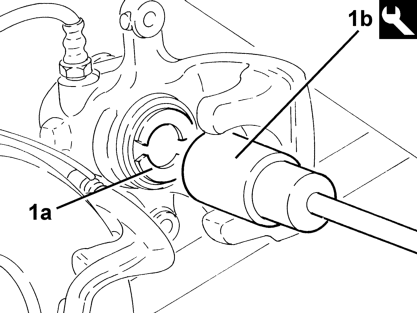

1 Compress the rear brake caliper piston 1a using the tool 1b to facilitate the fitting of the brake caliper.

Special tool 1.822.108.000 – Wrench 1b

Place the rear brake caliper, complete with pads and flexible pipe, back in its housing and fix it tightening the bolts to the recommended torque.

Screw M10 – Rear brake caliper: (Bracket side) 5.0 daNm

Refit the flexible pipe on the mounting bracket and secure it with its stop.

Fit the rear brake flexible pipe in its seating on the bracket, secure it with its stop and tighten the connector to the specified torque.

Union pipe M10 – Hose to rear brake caliper: (Rigid pipe side) 1.3 ÷ 1.5 daNm

Connect the handbrake cable to the rear brake caliper.

Proceed with the refitting See Op. 4450B11 Rear wheel (one) - r r .

Adjust the travel of the handbrake lever See Op. 3380A04 Handbrake - check travel .

Bleed the air from the braking system See Op. 3330A14 Hydraulic brake system - bleed .

Remove the car from the ramp.
