Rear brake disc - r r

Operation 3310B48 · Rear disc brakes

Removal

Position the vehicle on the ramp.

Proceed with the removal See Op. 4450B11 Rear wheel (one) - r r .

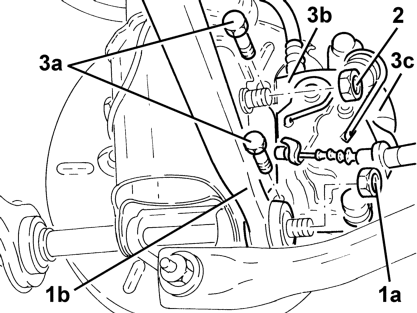

1 Undo the nut 1a on the bolt and move the front rear suspension front trailing arm 1b as much as necessary.

NOTE: This operation enables you to access the bottom bolt securing the brake caliper bracket.

2 Undo the nut on the top bolt securing the shock absorber to the hub vertical link.

NOTE: This operation enables you to access the top bolt securing the brake caliper bracket.

3 Undo the bolts 3a, move the bracket 3b complete with rear brake caliper 3c after releasing the flexible pipe from the attachment on the shock absorber, then secure it appropriately.

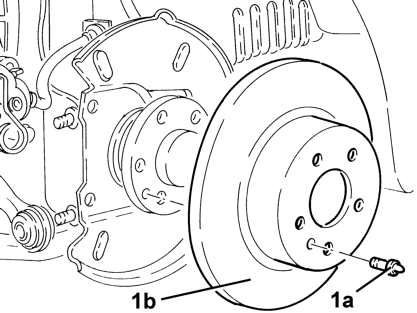

1 Undo the bolt 1a and remove the rear brake disc 1b.

Refitting

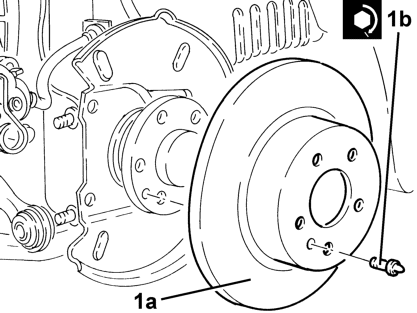

1 Refit the rear brake disc 1a in its seating and fix it tightening the bolt 1b to the specified torque.

Pin M8 – Front brake discs 1b: (Wheel hub side) 1.0 ÷ 1.4 daNm

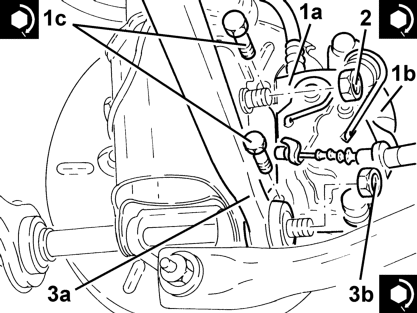

1 Refit the bracket 1a in its seating complete with rear brake caliper 1b and tighten the bolts 1c to the specified torque.

Screw M10 – Rear brake caliper bracket 1c: (Rear wheel hub stub axle side.) 4.5 ÷ 5.5 daNm

Fix the brake caliper flexible pipe to the shock absorber.

2 Tighten the nut on the top bolt securing the shock absorber to the hub vertical link to the specified torque.

Bolt M12 – Rear damper 2: (Rear wheel hub stub axle side.) 11.1 ÷ 13.5 daNm

3 Refit in its seating the rear suspension front trailing arm 3a and tighten the nut 3b to the recommended torque.

Bolt M12 – Rear suspension front wishbones 3b: (Rear wheel hub stub axle side.) 11.1 ÷ 13.5 daNm

Proceed with the refitting See Op. 4450B11 Rear wheel (one) - r r .

Remove the car from the ramp.
