Front door wiring - r r

Operation 5505B10 · Door,boot and bonnet wiring.

Removal

See Op. 7005D21 Front door window front guide - r r

See Op. 7005E12 Corner cover of one front side door, lh or rh r r

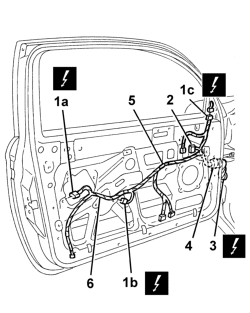

1 Disconnect the electrical connections from the door lock 1a, the electric windows motor 1b and the rear view mirror 1c.

Component N50 .Front driver's door lock geared motor 1a

Component N51 Front passenger door lock geared motor 1a

Component N60 Front driver's electric window motor 1b

Component N61 Front passenger side electric window motor 1b

Component P60 Driver's external rear view mirror 1c

Component P61 Exterior passenger side rear view mirror 1c

2 Disconnect the short circuit coupling from the structure.

3 Disconnect the door wiring electrical connection.

Component D30 Rear coupling for /front door. driver's side 3

Component D31 /Front passenger door. rear coupling 3

4 Disconnect the connector from the door frame (bayonet fitting).

5 Release the door wiring retainers from the frame.

6 Remove the wiring from the door frame.

Refitting

Check that the wiring is undamaged and that the individual conductors are firmly attached to the connections.

Check that the connections are fitted with anti-slip devices (secondary lock).

If necessary, check the continuity.

Position the wiring in its housing in the door frame.

Secure the cable loom to the door frame using the retainers.

Connect the connector to the door frame (bayonet fitting).

Connect the short circuit coupling to the structure.

Connect the electrical connection.

Check the operation of the electrical components connected.

See Op. 7005E12 Corner cover of one front side door, lh or rh r r

See Op. 7005D21 Front door window front guide - r r
